Home ProductsAcrylic Sheet Cutting Machine

Display Acrylic Sheet Composite Cutting Machine , Packaging Foam Cutting Machine

Display Acrylic Sheet Composite Cutting Machine , Packaging Foam Cutting Machine

Display Acrylic Sheet Composite Cutting Machine , Packaging Foam Cutting Machine
Display Acrylic Sheet Composite Cutting Machine , Packaging Foam Cutting Machine

Large Image :  Display Acrylic Sheet Composite Cutting Machine , Packaging Foam Cutting Machine Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: MAXWELL
Certification: CE,
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000USD
Packaging Details: WOODE BOX
Delivery Time: Within one month
Payment Terms: T/T, L/C
Supply Ability: 100 UNITS PER MONTH
Detailed Product Description
Product Name: Digital Flatbed Cutter For EVA Foam Model: DCZ732013RS
Effective Cutting Area: 2000mm*1300mm Max Speed: 1380mm/s
Cutting Material: EVA Foam、PE Foam、plastic Sheet Maximum Cutting Thickness: 31mm
High Light:

cnc acrylic cutting machine


flatbed plotter cutter

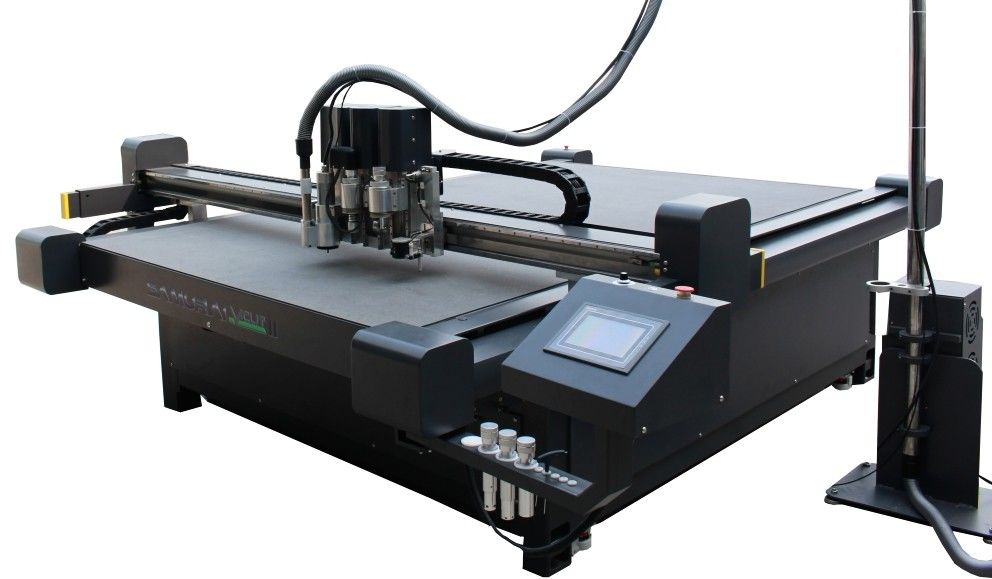

DCZ7XRS Series high speed flatbed digital cutter


Our DCZ7XRS series high speed digital flatbed cutter is equipped with a particular router and convey belt system, and other tools including the oscillating knife, creasing Wheel, drag knife, V cut knife and pen can be customized according to customer’s require. It can cut various kinds soft materials, such as corrugated paper, honeycomb board, paperboard, foam, grey board, KT board, PVC expansion sheet etc. Materials used in advertisement industry, like plastic, acrylic, PS board and PVC can also be cut by our digital flatbed cutting machine. It can also realize the continuous cutting of the roll and flat material by equipping the convey belt. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.

Main features:

Three independent module, cover all major materials

Exchangeable tools, better expansion

High speed imported spindle, smoother in the cutting edge

New vacuum area design, stronger suction

High efficient material transport system

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet, PS board, acrylic, plastic board etc.


Ads, Display, Packaging, Graphic.


Model DCZ762516RS DCZ761713RS DCZ761310RS
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000
Configuration Oscillating knife,pen,creasing tool,drag knife, foam knife, v cut knife, router system, convey belt
Router Speed 50000RPM or 25000RPM
Max aped 1400mm/s
Driver Servo
Precision ≤0.1mm
Maximum cutting thickness 60mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3460*1400mm 2700*3160*1400mm 2300*2830*1400mm
Note Other size can be customized



1.AOKE CNC cutting machines use imported American CPU and precise eletronic components, meeting world leading level in terms of machines stability and operability.

2.Self developed built in CNC control system.

3.File format can be DXF, PLT and any CAD software with HPGL format

4.8 groups of knives and pen arrangement provides cutting solution for different material with different thickness

5.AOKE CNC cutting machines equipped with imported linear guiderail, famous driving motors. It is fast, accurate, smooth.




  • Material saving. 3%-8% improved.
  • Labor saving. 3-4 labors saved.
  • Time saving. 3 times faster when compared with manual work.
  • Management saving. Easy to manage.



Main functions

  • Cutting.
  • Punching.
  • Marking.




Video registration system, feeding and blanking system
