Product Details:
Payment & Shipping Terms:
|
| Product Name: | LASER CUTTING MACHINE | Model: | M-1325HC |
|---|---|---|---|
| Effective Cutting Area: | 1300mm*2500mm | Cutting Material: | Acrylic, Wooden |
| Maximum Cutting Thickness: | 20mm | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| TABLE: | Flatbed, Conveybelt, |
Acrylic word cutting,furniture board cutting,MDF frame cutting,furniture model cutting

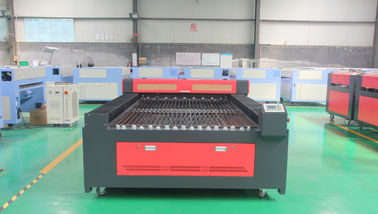

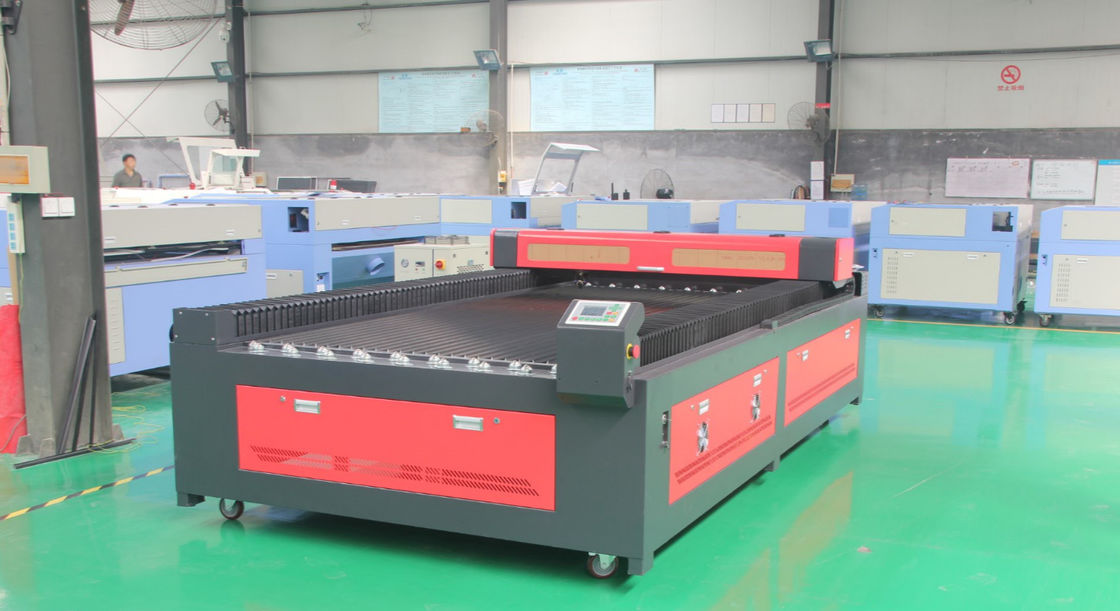

M-1326L Laser Cutting Machine
• Technical Parameters
| Model | Big Size M-1326 Laser Cutting Systems |
| Processing Area | 1300mm*2600mm |
| Laser Power | 80W,100W,130W, 280W |
| Laser Type | Sealed Co2 glass laser tube |
| Working Table | Blades |
| Cooling Mode | water cooling and protection system |
| Graphic Format Supported | BMP,PLT,DST,AI,DXF etc |
| Resetting Positioning Accuracy | ±0.05mm |
| Working Speed | 1-600mm/s |
| Resolution Ratio | ≤0.0125mm |
| Driving Mode | DC0.8A 24V stepper motor |
| Working Voltage | AC 110 - 220V±10%,50 - 60Hz,10A max |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |
| Driving System | Stepper(option servo) |
Application Industry:
Advertising,model,art and craft,furniture, etc.
Application Materials:
acrylic,MDF,acrylic,bamboo board,foam,glass,etc.
Application Show:
Acrylic word cutting,furniture board cutting,MDF frame cutting,furniture model cutting,etc.
Machine Characteristics
1.The machine adopt advanced DSP control system which continue and optimize the cutting speed, processing path, improve the working efficy. the clearance compensation ensure the processing quality.
2.Fully supported CAD,CORELDRAW,PHOTOSHOP software, friendly man-computer interface.
3.In the process of designing and producing-----stable mechanical design, imported linear guide rail and precision gear, make sure the high speed and high precision.
4. Special treatment easily changeable blade or honeycomb worktable, easy maintance.
5.Widely uesed, make the large size and kinds of common board processing by laser machine possible
6.Reasonable design of laser line with the industry water chiller, keep the same power-force on each spot, ensure the quality of cutting
7.Multi-document function: the machine can store 256 files. the machine can still work out of computer.
