Name: | Light Box Making Machine | Tool: | Special Engraving Blades |
---|---|---|---|
Size: | 3000*1600mm, 2400*1200mm | Speed: | 2m/s |
Engraving Material: | Acarylic | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
Cutting Thickness: | Less Than 100mm | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
TABLE: | Flatbed, Conveybelt, |

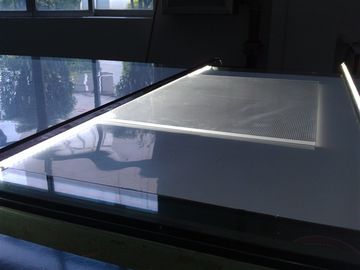

LED Light box light guide panel V cut groove making machine, ecnomic than laser machines, acrylic light panel
DCS30 series LGP V-cut is specially developed for the LGP industry, which equips special engrave knife to engrave V-groove on acrylic LGP. This machine adopts the pressure control technology to overcome the cutting quality various to the uneven of the table or the LPG, so the cutting quality is better and the light more evenly. The LGP has the characteristic as follows after v-cut:
High light converting ratio(More than 40% on average)
equality light
long lifespan
safety& environment friendly
Tool

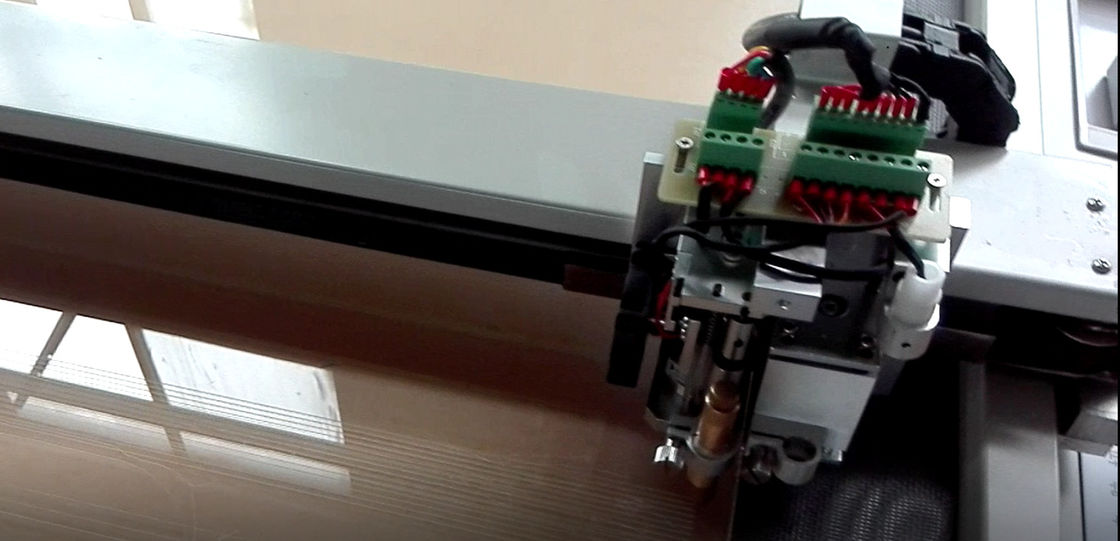

The LGP cutter comes with the special engrave knife to reach a good quality of LGP.
Any kind of acrylic and light box within 10mm
Model
|
DCS301209 | DCS301509 | DCS301512 | DCS301812 |
effective cutting area
|
1200*900mm | 1500*900 |
1500*1200mm |
1800*1200mm |
Max speed
|
1000mm/s | |||
Precision
|
<0.05mm | |||
Material thickness
|
<10mm | |||
Configuration
|
Special engrave knife | |||
Voltage
|
220v±10% 50Hz | |||
Driver
|
Step motor | |||
Data form
|
HPGL, DXF, PDF | |||
Occupy dimension(L*W*H)
|
1635*1365*1080mm | 1935*1365*1080mm |
1935*1665*1080mm
|
2235*1665*1080mm
|
Note
|
Other size can be customized.
|
