Product Name: | Graphic Sheet Cutter Plotter | Model: | DCF763522 |
---|---|---|---|
Effective Cutting Area: | 3500mm*2200mm | Application: | Sinage Sheet Cutting Making |
Smallest Cutting Diameter: | 3.3mm | Maximum Cutting Thickness: | 30mm |
Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
Cutting Thickness: | Less Than 100mm | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
TABLE: | Flatbed, Conveybelt, | TABLE: | Flatbed, Conveybelt, |
High Light: | foam cutting machinery,cnc foam cutter machine |
Foam Cutting machine flatbed cutting plotter machine cost cutters prices footwear cutting machine apparel solutions
Main Features
1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.
2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.
3.New steel structure, suit for production use.
Application:
Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.
Cutting materials:
Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.
Introduction:

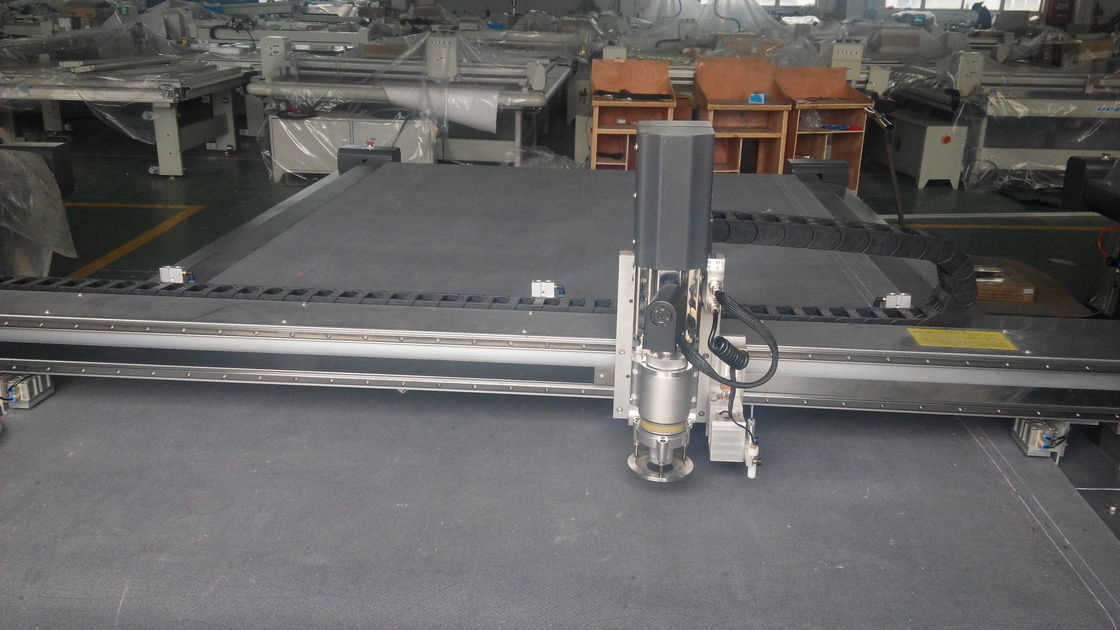

DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.
Specification
Model | DCF732516R | DCF731713R | DCF731310R |
Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
Configuration | Oscillating knife,pen,convey system | ||
Max aped | 1400mm/s | ||
Smallest cutting diameter | 6mm | ||
Maximum cutting thickness | 30mm | ||
Control line and driver | Servo | ||
Precision | ≤0.1mm | ||
Data form | HPGL,DXF,PDF | ||
Voltage | 220v±10%50Hz | ||
Data port | parallel port,serial port,USB port | ||
Option | Video registration system, feeding and blanking system | ||
Occupy dimension(L*W*H) | 3500*3200*1400mm | 2650*2900*1400mm | 2200*2570*1400mm |
Note | Other size can be customized. |
Optional
Video registration system, feeding and blanking system.
