Home ProductsFoam Cutting Machine

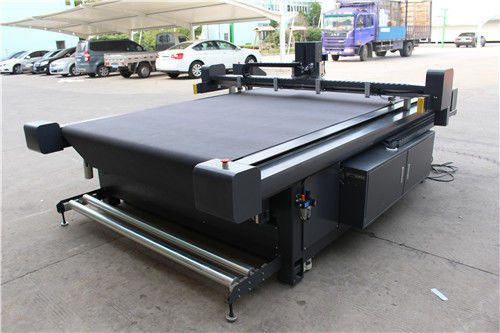

Increase Production Foam Cutting Machine , Pattern Plotter Cutting Machine

Increase Production Foam Cutting Machine , Pattern Plotter Cutting Machine

Increase Production Foam Cutting Machine , Pattern Plotter Cutting Machine
Increase Production Foam Cutting Machine , Pattern Plotter Cutting Machine Increase Production Foam Cutting Machine , Pattern Plotter Cutting Machine

Large Image :  Increase Production Foam Cutting Machine , Pattern Plotter Cutting Machine Get Best Price

Product Details:
Place of Origin: SHANGHAI CHINA
Brand Name: MAXWELL CUT
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: up to the sizes
Packaging Details: wooden boxes
Delivery Time: within one month after we get the order
Payment Terms: TT, WU, Paypal
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Digital Foam Cutter Model: DCF704018
Effective Cutting Area: 4000mm*1800mm Max Aped: 1220mm/s
Smallest Cutting Diameter: 3.5mm Maximum Cutting Thickness: 41mm
Cutting Materials: Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, Cutting Materials: Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft,
Cutting Thickness: Less Than 100mm Size: 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised
Tools: Oscillating Knife, Creasing Wheel, Pen, Laser Light, Tools: Oscillating Knife, Creasing Wheel, Pen, Laser Light,
Tools: Pneumatic Tool, Vcut, Kiss Cut, CCD TABLE: Flatbed, Conveybelt,
High Light:

foam cutting machinery

,

foam cutting equipment

Foam Cutting machine pattern plotter cutting





Main Features

1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.

2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

3.New steel structure, suit for production use.



Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.



Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.

2. Saves time and money whilst improving quality

  • Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
  • Greatly reduces the time taken to hand cut sample and graded paper patterns.
  • Consistent accuracy throughout, utilizing the AOKECUT CAD software, any modifications to the pattern can be re-cut quickly and efficiently.
  • Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.



Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.



Optional

Video registration system, feeding and blanking system.
