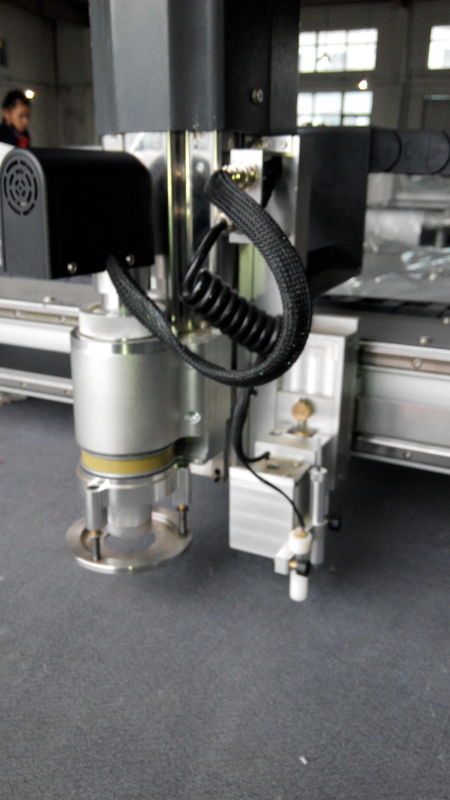

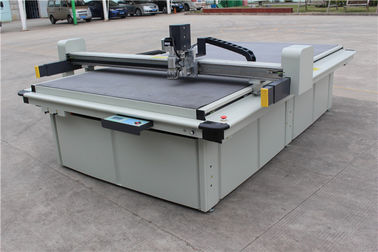

Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table

Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table

Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table
Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table

Large Image :  Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table Get Best Price

Product Details:
Place of Origin: SHANGHAI CHINA
Brand Name: MAXWELL CUT
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: up to the sizes
Packaging Details: wooden boxes
Delivery Time: within one month after we get the order
Payment Terms: TT, WU, Paypal
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: UV Flatbed Pritning Fletbed Cutter Model: DCF763020
Effective Cutting Area: 3000mm*2000mm Application: UV Pritning Display Making
Smallest Cutting Diameter: 3mm Maximum Cutting Thickness: 38mm
Cutting Materials: Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, Cutting Thickness: Less Than 100mm
Size: 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised Tools: Oscillating Knife, Creasing Wheel, Pen, Laser Light,
Tools: Pneumatic Tool, Vcut, Kiss Cut, CCD Tools: Pneumatic Tool, Vcut, Kiss Cut, CCD
Tools: Pneumatic Tool, Vcut, Kiss Cut, CCD TABLE: Flatbed, Conveybelt,
TABLE: Flatbed, Conveybelt,
High Light:

foam cutting machinery

,

foam cutting equipment

Foam Cutting machine cnc cutting machine automatic card cutter machine cad plotter suction machine digital table



Main Features

1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.

2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

3.New steel structure, suit for production use.



Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.





Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.





Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.



Optional

Video registration system, feeding and blanking system.



Features:

The application of an English port makes Digital Pattern Cutting Solution fast and convenient.

High performance is guaranteed with the integrated circuit plate.

The linear guide of Digital Pattern Cutting Solution ensures high speed and few errors.

Digital Pattern Cutting Solution feature imported digital servo drivers and their SD cards offer mass storage.

The powerful compatible function enables connection with any kind of CAD software.

Digital Pattern Cutting Solution have an LCD touch screen in both English and Chinese.

Digital Pattern Cutting Solution feature intellective order printing.

Seal Gasket Cnc Foam Cutting Machine / Automatic Card Cutter Digital Table 0
