Payment & Shipping Terms:
|Product Name:||Leather Cutting Equipment||Model:||DCF70X 1713-65|
|Effective Cutting Area:||1700*1300mm||Max Aped:||1400mm/s|
|Smallest Cutting Diameter:||5mm||Maximum Cutting Thickness:||60mm|
mat cutter machine,
mat cutting machine
Composite Cutting machine EVA plastic oscillating knife carpet cut sofa vacuum pump gasket cut leather cut foam

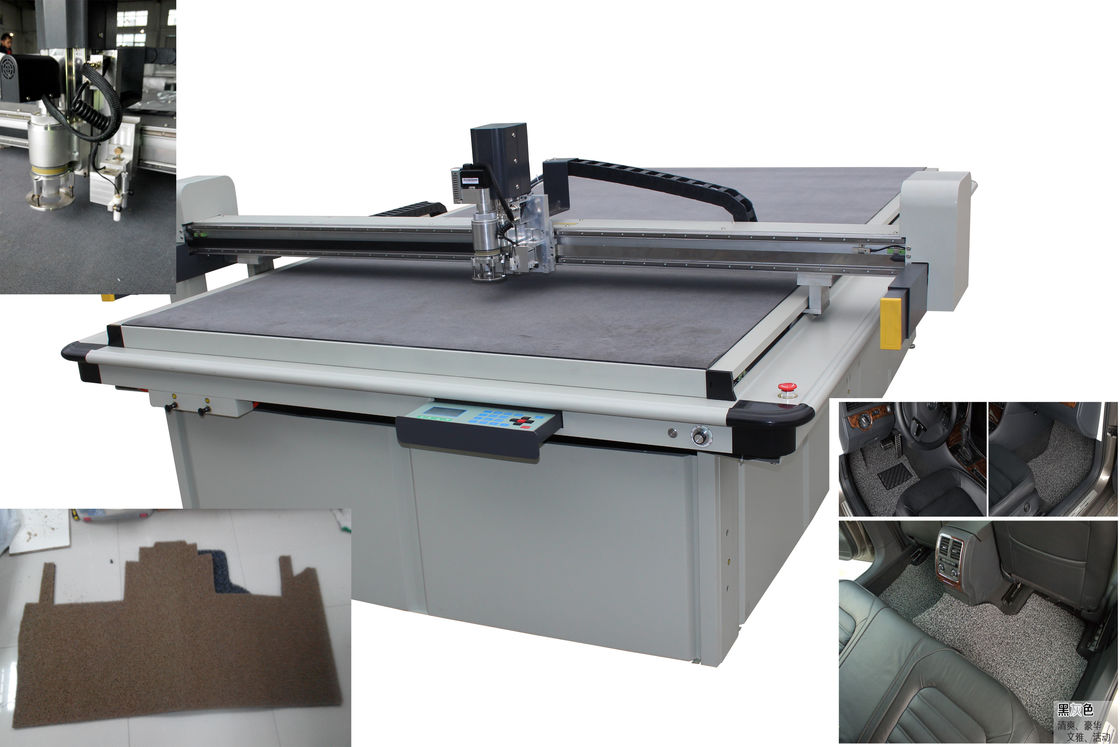

DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.

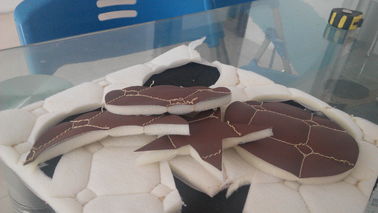

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.
a.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.
b.New steel structure, suit for production use.
c.The felt convey belt of our product is imported and the material transportation system is of high efficiency.
Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.
|Effective cutting area||2500*1600mm||1700*1300mm||1300*1000mm|
|Configuration||Oscillating knife,pen,convey system|
|Smallest cutting diameter||6mm|
|Maximum cutting thickness||30mm|
|Control line and driver||Servo|
|Data port||parallel port,serial port,USB port|
|Option||Video registration system, feeding and blanking system|
|Note||Other size can be customized.|
Video registration system, feeding and blanking system.
