Product Details:
Payment & Shipping Terms:
|
| Product Name: | Flatbed Plotter Cutter | Model: | DCF70X 2516-233 |
|---|---|---|---|
| Effective Cutting Area: | 2500*1600mm | Max Aped: | 1400mm/s |
| Smallest Cutting Diameter: | 4mm | Maximum Cutting Thickness: | 60mm |
| High Light: | mat cutting machine,computerized mat cutter |
||
Digital Mat Cutting machine , control numeric flatbed plotter cutter, car pet cutting machine, fabric cut
Main Features
1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.
2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.
3.New steel structure, suit for production use.
Cutting materials:

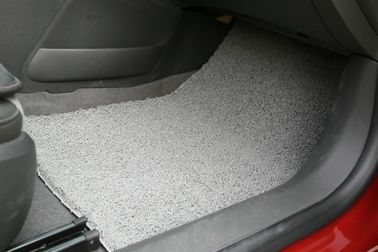

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.
Application:
Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.
Introduction:

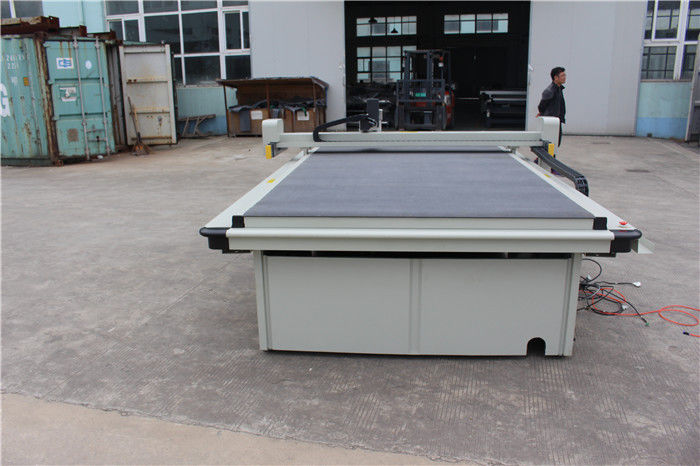

DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.
INNOVATIVE FEATURES
1.AOKE CNC cutting machines use imported American CPU and precise eletronic components, meeting world leading level in terms of machines stability and operability.
2.Self developed built in CNC control system.
3.File format can be DXF, PLT and any CAD software with HPGL format
4.8 groups of knives and pen arrangement provides cutting solution for different material with different thickness
5.AOKE CNC cutting machines equipped with imported linear guiderail, famous driving motors. It is fast, accurate, smooth.
INNOVATIVE FEATURES
1.AOKE CNC cutting machines use imported American CPU and precise eletronic components, meeting world leading level in terms of machines stability and operability.
2.Self developed built in CNC control system.
3.File format can be DXF, PLT and any CAD software with HPGL format
4.8 groups of knives and pen arrangement provides cutting solution for different material with different thickness
5.AOKE CNC cutting machines equipped with imported linear guiderail, famous driving motors. It is fast, accurate, smooth.
Specification
| Model | DCF732516R | DCF731713R | DCF731310R |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
| Configuration | Oscillating knife,pen,convey system | ||
| Max aped | 1400mm/s | ||
| Smallest cutting diameter | 6mm | ||
| Maximum cutting thickness | 30mm | ||
| Control line and driver | Servo | ||
| Precision | ≤0.1mm | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10%50Hz | ||
| Data port | parallel port,serial port,USB port | ||
| Option | Video registration system, feeding and blanking system | ||
| Occupy dimension(L*W*H) | 3500*3200*1400mm | 2650*2900*1400mm | 2200*2570*1400mm |
| Note | Other size can be customized. | ||
Optional
Video registration system, feeding and blanking system.
