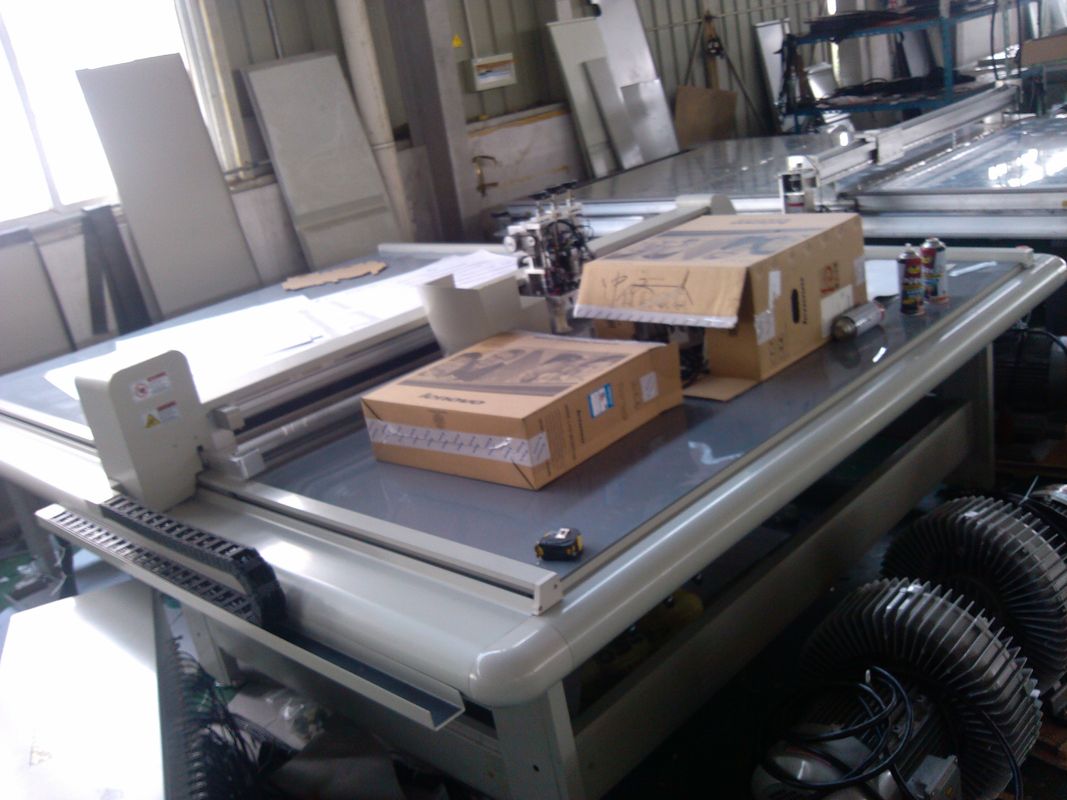

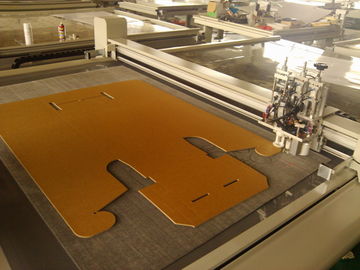

Brunt Model Carton Box Making Machine / Cardboard Cutter Machine For Leather

Brunt Model Carton Box Making Machine / Cardboard Cutter Machine For Leather

Brunt Model Carton Box Making Machine / Cardboard Cutter Machine For Leather
Brunt Model Carton Box Making Machine / Cardboard Cutter Machine For Leather Brunt Model Carton Box Making Machine / Cardboard Cutter Machine For Leather

Large Image :  Brunt Model Carton Box Making Machine / Cardboard Cutter Machine For Leather Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Flatbed Digital Cutter Model: DCZ50
Effective Cutting Area: 2500*1600mm 1700*1300mm 1300*1000mm Max Aped: 1400mm/s
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm
High Light:

1300x1000mm flatbed digital cutter

,

cardboard cutter machine

,

paper box flatbed digital cutter

 flatbed digital cutter servo motor vacuum pump oscillating knife digital cutPaper Box Cutting machine



description

a.DCZ50 series paper box carton sample making machine is AOKE new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.



The main character of DCZ50 is as following:

I·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.

II·Carton and box can reach to perfect cutting performance

III·Convenient half cut set to achieve perfect half cutting performance

IV·Safety guard system is equipped to avoid injury

V·Brunt model sold well in EU and USA market

Specification

Model DCZ502516 DCZ501713 DCZ501310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing wheel,drag knife
Max aped 1000mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 15mm
Control line and driver Servo
Precision ≤0.1mm
Vacuum 5.5kw
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port PCI port
Data Transmission speed 10MB/s
Input cushion area 32MB
Occupy dimension(L*W*H) 3165*2545*1250mm 2365*2245*1250mm 1960*1935*1250mm
Note Other size can be customized.
