Home ProductsCarton Box Making Machine

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter
box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter
video play

Large Image :  box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: MAXWELL
Certification: CE,
Model Number: MEC85
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 19,000USD
Packaging Details: WOODE BOX
Delivery Time: Within one month
Payment Terms: T/T, L/C
Supply Ability: 100 UNITS PER MONTH
Detailed Product Description
Product Name: MEC85 Box Sample Cutting Machine, Flatbed Uv Digital Printing Machines For Corrugated Paper , Honeycomb Boardr Model: MEC851713
Effective Cutting Area: 1700*1300mm Max Aped: 13.5cm/s
Motor: Servo Motor Maximum Cutting Thickness: 60mm
Condition: New Voltage: 220V/380V,380V,220/380/415v,220v,380V/220V
Warranty: 1 Year,one Year,12 Months Type: Packaging Line,Carton Forming,Feeding Paper To Corrugation Machine/single Facer
Usage: Packaging,Corrugated Box,Making Carton,chemical,CORRUGATING CARDBOARD Machine Type: Carton Machine,Corrugated Paperboard Making Machine,Fully Automatic

Box sample cutting machines, oscillating knife, creasing wheel, pen for Corrugated paper , honeycomb board



Introduction:

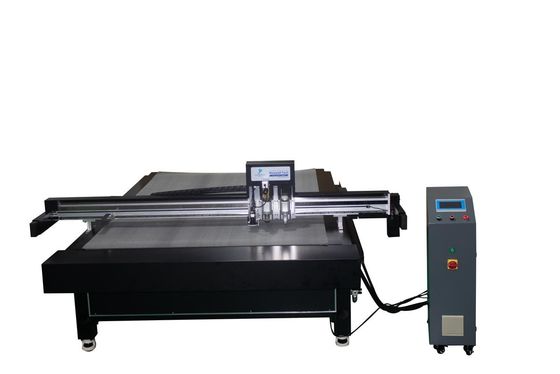

MEC85 series high speed box sample cutting machine is the Maxwell new developed cutting system for the industries as packaging, printing, ads, display etc.

It has two independent module design, very good expansibility and exchangeable tools.

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 0

It equips versatile tools as vibrating knife, creasing wheel, drag knife, V cut knife, which can cut the materials up to 60mm thick

It has 3 kinds of wheels: 3mm, 5mm, 7mm to cut honeycomb board and cardboard.

You can achieve perfect creasing effect by changing wheels with suitable depth and width. By adjusting oriented pressure with software creasing tool, the CNC knife cutter can crease forward and backward with higher quality and without breaking top layer of cardboard and honeycomb board.

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 1

With V-Cut tool, the groove can be adjusted according to specific cutting requirements.Available angles are 0°, 15°, 22.5°, 30°, 45°.The industrial CNC knife cutter is mainly used for v-groove making for honeycomb board, cardboard, corrugated board, grayboard and other relatively thicker carton board materials.

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 2box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 3

Thanks for all of the tools, it can capable with many kind of materials such as corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion.



box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 4

1. Infrared sensing system, 360°surround security to ensure operator safety

2. Perfect camera positioning system, support ‘.‘ or ’十‘ mark etc., improve work efficiency

3. The sturdy aluminum honeycomb platform has a good suction effect, ensuring that the platform is flat and not deformed after prolonged use.

4. Flexible tooling system, compatible with all series tools;

5. Scientific and simple wiring system and chassis circuit design, stable and safe; equipped with all tool interfaces to support subsequent upgrade; easy to installation and maintenance

6. Efficient anti-drying and rolling feeding system, complete feeding and cutting in 5 seconds; Make the machine realize continuous cutting automatically;

7. Powerful CAD editing and design software, perfect work with CorelDraw, Adobe illustrator, Onyx, Caldera, PrintFactory, MainTop software etc.; And support barcode reading for avoiding operator send the wrong cutting file, improve work efficiency.

8. Accurate tool setting system, easy to operate, can accurately control the depth of the knife and extend the use time of mat

9. The parameter formulation system can adjust the optimal cutting parameters according to different materials to ensure the precision of each cutting;

box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 5

MEC85 machine takes the whole new table design of steel frame and the table vacuum zone, which enables the stronger suction and more stable mechanical properties. Thanks to the auto tool height system, it makes the machine smarter, just by pressing one key then the tool depth can be set automatically, therefore avoid the overcut of the table.

main features:

New steel frame design, more stable of machinery

Cutting depth up to 60mm thickness, cover the major materials.

Two independent module, exchangeable tools.

New vacuum zone, stronger suction

Cutting Samples



box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 6box sample cutting machine, oscillating cut and creasing machine, sample maker, plotter, Box maker, digital knife cutter 7
