Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software

Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software

Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software
Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software

Large Image :  Dual Function Tool Head Leather Cutting Machine Connectable Common CAD Software Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Leather Cutting Machine Model: DCF70X 2516
Effective Cutting Area: 2500*1600mm 1700*1300mm 1300*1000mm Max Aped: 1300mm/s
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm
High Light:

flatbed digital cutting machine

,

fabric cutting machine

DCF7X series high speed Leather Cutting machine Single Module cutting system



Introduction:



DCF7XR series high speed Leather cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.

Main Features

The felt convey belt of our product is imported and the material transportation system is of high efficiency.

Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

New steel structure, suit for production use.

Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.



Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.

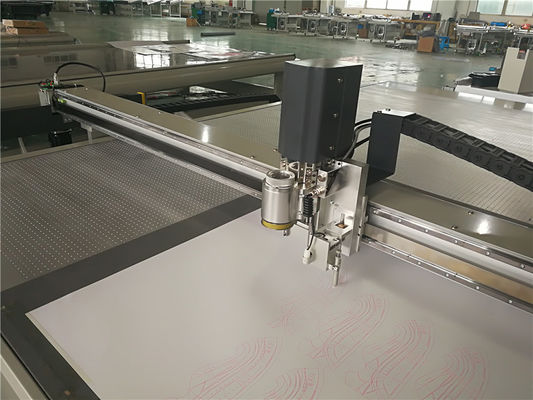

1. Tool Head

  • A dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.

2. Compatibality

  • Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leather wares.



FAQ

1. How long can I get the feedback after we send the inquiry?
A:We will reply you within 12 hours.
2. Are you a factory?
A:Yes, We are. We have devoted in this field over 20 years.
3. Where is your factory? How can I visit you?
A:We are in Shanghai, we can pick you up from airport or train station if you come to visit us.

Any question, pls feel free to make me know.

How to Take Care of Your Cutting Machine

1. Choose a good environment for AOKE cutting machine, it should not be placed in a strong lit place, to avoid direct sunlight in case of the breakage of countertops and affect of the machine’s use life.
2. Clean the cutting machine countertops regularly to prevent suction outlet to be blocked (Do not pour the alcohol directly into the countertop).
3. Apply periodical maintenance, optimization and antivirus works on computer system.The unstable computer system will also affect normal operation of the cutting machine.
4. Do not place weight, scissors, or other objects on the cutting machine, so as not to hit the machine tool head when starting AOKE cutting machine.
5. Do not press heavy load down on both sides of the cutting machine table tracks and beams so as not to damage the track.
6. Avoid the plug and unplug of AOKE cutting machine by the electric cable, Strictly prohibit unplug online electric cable. Otherwise it will damage the cutting machine or computer
7. When AOKE cutting machine is running, do not put your hands close to the head to avoid accidents.

Optional

Video registration system, feeding and blanking system.
