Semi - Automatic Gift Box Making Machine With Omron Japan Control System

I'm Online Chat Now

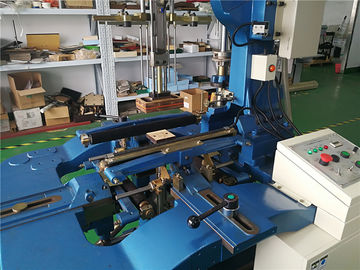

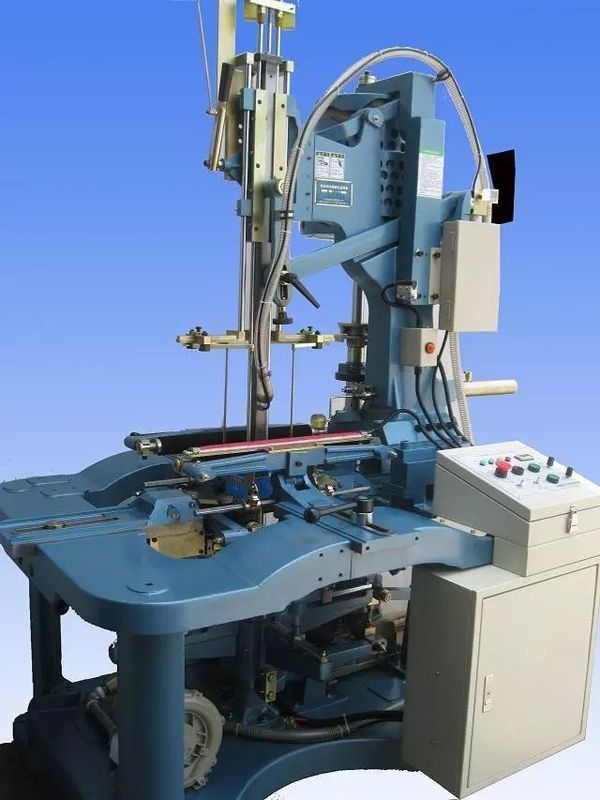

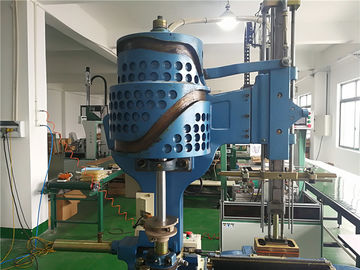

Semi - Automatic Gift Box Making Machine With Omron Japan Control System

China Semi - Automatic Gift Box Making Machine With Omron Japan Control System supplier
Semi - Automatic Gift Box Making Machine With Omron Japan Control System supplier Semi - Automatic Gift Box Making Machine With Omron Japan Control System supplier Semi - Automatic Gift Box Making Machine With Omron Japan Control System supplier

Large Image :  Semi - Automatic Gift Box Making Machine With Omron Japan Control System

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: H6

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
MAX SIZE: L460*W360*H120 Mm Min Size: L75*W75*H10mm
Working Speed: 10-25 Per Min Technology: Janpan
Appilication: Mobile Phone Box, Shoes Box, Cosmetics Box, Gift Box And Chocolate Box Operation: Semi-auto

Semi-automatic gift box Box Wrapping Machine rigid gift box making machine paper jewelry box wrapper



Cam Mechanism of precision forging, machine body adopts the resin sand casting process, sturdy and durable

Three kinds of operation mode of the switch: Single operation / continuous operation/ induction operation

Control system: Idec Japan/ Yaskawa Japan/ Omron Japan

The main motor adopts imported from Mikipulley Japan, the motor has excellent brake protection function, which can ensure the safety of operation personal.

The gas path system adopts EMORE Taiwan, Toyox Japan, Low noise, long life

Bearing:ASAHI Japan/ Locking device: NBK

Technical Parameters:

Max size L420*W300*H85 mm Power 220V 1.15KW
Min size L85*W60*H10mm Weight 1100KG
Speed 20-35pcs/min Dimension L1300*W1000*H2300mm





This machine is designed for packaging boxes,such as jewellery box, gift box, mobile box, tea box, moon cake box, bottom and cover box to press the bubble of the finished rigid boxes.







Company introduction:
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
UV Coating Machine
Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc

Semi - Automatic Gift Box Making Machine With Omron Japan Control System

Technical Parameters:

Max size L460*W360*H120 mm Power 220V 2.1KW
Min size L75*W75*H10mm Weight

600KG



Speed 10-25pcs/min Dimension

L1050*W900*H2600mm
