Automotive Interior Composite Cutting Machine Feeding And Blanking System

China Automotive Interior Composite Cutting Machine Feeding And Blanking System supplier
Automotive Interior Composite Cutting Machine Feeding And Blanking System supplier Automotive Interior Composite Cutting Machine Feeding And Blanking System supplier

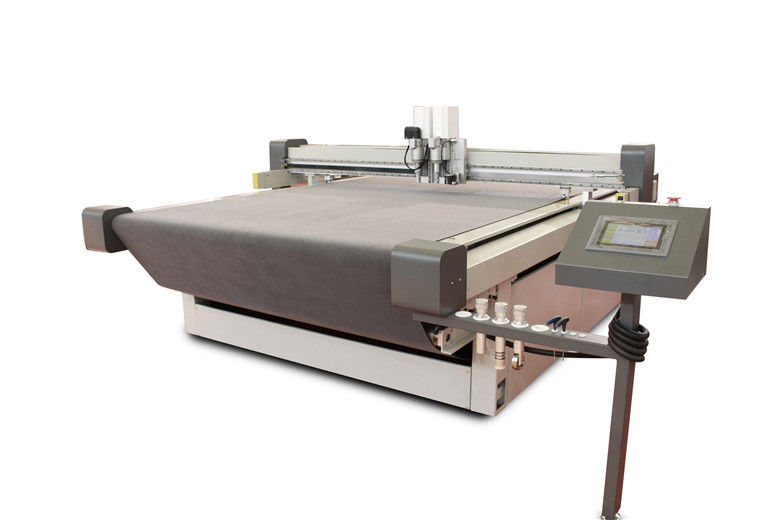

Large Image :  Automotive Interior Composite Cutting Machine Feeding And Blanking System

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCF70XR

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: DCF7XR Series High Speed Composite Cutting Machine For Glass Fiber , Carbon Fiber Model: DCF70XR 2516c
Effective Cutting Area: 1700*1300mm 1300*1000mm Option: Feeding And Blanking System
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm

DCF7XR series high speed composite cutting machine for glass fiber , carbon fiber





Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.



Main Features



The felt convey belt of our product is imported and the material transportation system is of high

efficiency.

Highly-efficient servo system, liner guide driving system and new module design are employed to

our convey belt cutting system.

New steel structure, suit for production use.

Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys,

shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.



Specification



Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.



ABOUT US



1.20 years of experience in CNC cutting technology;

2.The first and biggest CNC cutting machine manufacturer in China;

3.We focus on the research and development of CNC knife-cutting technology and related CAD

   software over the past 20 years;

4.The quality and service are regarded as the life of our corporation;

5.We will never be satisfied until you are satisfied;

6.Our engineering team never stop to improve our machine and upgrade our software;

7.AOKE is based in Shanghai, aiming at the global market.

Optional

Video registration system, feeding and blanking system.
