Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System

I'm Online Chat Now

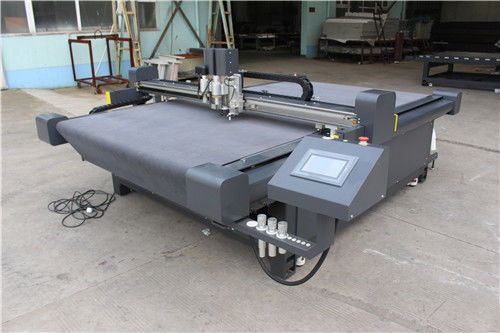

Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System

China Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System supplier
Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System supplier Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System supplier

Large Image :  Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCF7X

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Pringting Packaging Cutting Machinery Model: DCF764016
Effective Cutting Area: 4000mm*1600mm Application: Printing Die Cutting
Smallest Cutting Diameter: 3.5mm Maximum Cutting Thickness: 32mm

Foam Cutting machine cnc cutting machine automatic card cutter machine cad plotter suction machine



Main Features

1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.

2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

3.New steel structure, suit for production use.



Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.





Cutting materials:

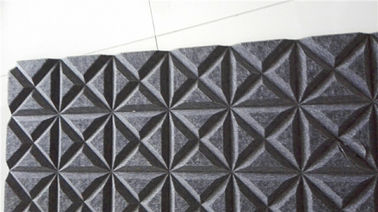

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.





Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.



Optional

Video registration system, feeding and blanking system.



How to Take Care of Your Cutting Machine

1. Choose a good environment for AOKE cutting machine, it should not be placed in a strong lit place, to avoid direct sunlight in case of the breakage of countertops and affect of the machine’s us



e life.
2. Clean the cutting machine countertops regularly to prevent suction outlet to be blocked (Do not pour the alcohol directly into the countertop).
3. Apply periodical maintenance, optimization and antivirus works on computer system.The unstable computer system will also affect normal operation of the cutting machine.
4. Do not place weight, scissors, or other objects on the cutting machine, so as not to hit the machine tool head when starting AOKE cutting machine.
5. Do not press heavy load down on both sides of the cutting machine table tracks and beams so as not to damage the track.
6. Avoid the plug and unplug of AOKE cutting machine by the electric cable, Strictly prohibit unplug online electric cable. Otherwise it will damage the cutting machine or computer
7. When AOKE cutting machine is running, do not put your hands close to the head to avoid accidents.

Features:

The application of an English port makes Digital Pattern Cutting Solution fast and convenient.

High performance is guaranteed with the integrated circuit plate.

The linear guide of Digital Pattern Cutting Solution ensures high speed and few errors.

Digital Pattern Cutting Solution feature imported digital servo drivers and their SD cards offer mass storage.

The powerful compatible function enables connection with any kind of CAD software.

Digital Pattern Cutting Solution have an LCD touch screen in both English and Chinese.

Digital Pattern Cutting Solution feature intellective order printing.

Automatic Durable Cnc Cutting Machine With Highly - Efficient Servo System
