High Efficiency Foam Cutting Equipment With Liner Guide Driving System

I'm Online Chat Now

High Efficiency Foam Cutting Equipment With Liner Guide Driving System

China High Efficiency Foam Cutting Equipment With Liner Guide Driving System supplier
High Efficiency Foam Cutting Equipment With Liner Guide Driving System supplier High Efficiency Foam Cutting Equipment With Liner Guide Driving System supplier

Large Image :  High Efficiency Foam Cutting Equipment With Liner Guide Driving System

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCF7X

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Flatbed Digital Cutter Model: DCF732516
Effective Cutting Area: 2500*1600mm Max Aped: 1330mm/s
Smallest Cutting Diameter: 3.4mm Maximum Cutting Thickness: 34mm

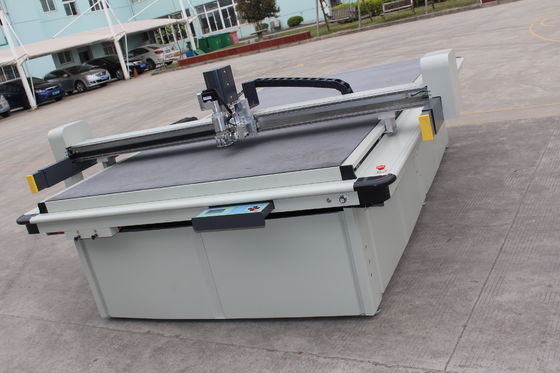

Foam Cutting machine drawing and cutting table



Main Features

1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.

2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

3. New steel structure, suit for production use.



Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.



Flexibility
The high speed, high accuracy digital servo drives provide smooth and reliable operation Versatile tooling options ensure that you have the ability to finish a vast range of materials quickly and easily. Adding extra tooling, such as the powerful 1KW router, extends the range of materials that can be cut far beyond those that a single point knife cutting system can handle. Because tables come in an extensive range of sizes you can be confident of finding a solution that fits your requirements perfectly.

Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.





Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.



Optional

Video registration system, feeding and blanking system.
