PVC Carbon Glass Fiber Cutting Machine 1100mm/S For Pre Soaked Material

PVC Carbon Glass Fiber Cutting Machine 1100mm/S For Pre Soaked Material

PVC Carbon Glass Fiber Cutting Machine 1100mm/S For Pre Soaked Material
PVC Carbon Glass Fiber Cutting Machine 1100mm/S For Pre Soaked Material PVC Carbon Glass Fiber Cutting Machine 1100mm/S For Pre Soaked Material

Large Image :  PVC Carbon Glass Fiber Cutting Machine 1100mm/S For Pre Soaked Material Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: EVA Foam Plotting Machine Model: DCF703025
Effective Cutting Area: 3000mm*2500mm Max Aped: 1100mm/s
Application: Foam Cut Pack Maximum Cutting Thickness: 31mm
High Light:

foam cutting machinery

,

cnc foam cutter machine

,

oscillating knife carbon fiber cutting system

Foam Cutting machine Single Module cutting system oscillating knife presoaked material  glass fiber, carbon fiber





Main Features

1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.

2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

3.New steel structure, suit for production use.



Introduction:

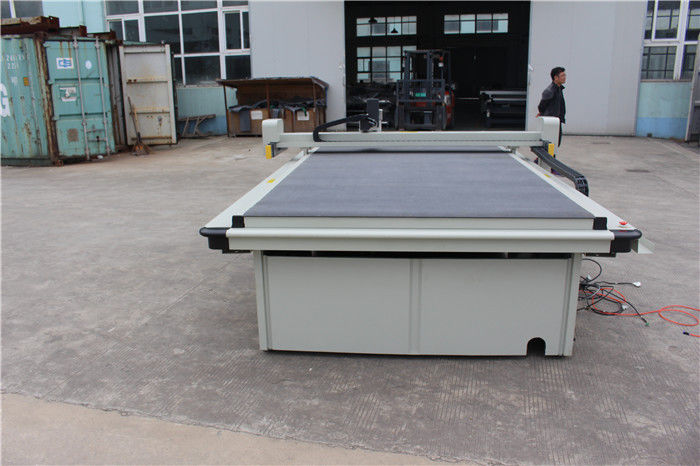

DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.





Cutting materials:

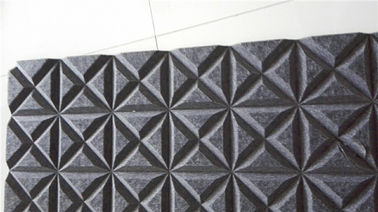

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.





Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.

ABOUT US



1.20 years of experience in CNC cutting technology;

2.The first and biggest CNC cutting machine manufacturer in China;

3.We focus on the research and development of CNC knife-cutting technology and related CAD software over the past 20 years;

4.The quality and service are regarded as the life of our corporation;

5.We will never be satisfied until you are satisfied;

6.Our engineering team never stop to improve our machine and upgrade our software;

7.AOKE is based in Shanghai, aiming at the global market.



GUARANTEE & AFTER SALE SERVICE

1.One year guarantee for whole machine except consumables such as knife blade, mat.

2.You are welcome to our company to have a professional trainning and observation.

3.Calling or door-to-door service.

4.24 hour online and hot line services.

  1. Use friendly-English software, usual manual and detailed videos.



After-sale service
First, warmly welcome you to our head office to have a professional training and observation.
We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
If you need help, you can send email to us or contact us by skype or MSN online chatting tools.

We offer 24h online service.



AOKE GD series cutting machines are specialized in patterns making. This digital cutting

machine works with computer, therefore, any design shape can be sent to this machine for your cutting purpose, and the outcome is perfectly accurate.

This pattern cutting machine is widely used in garment, cloth, knitwear, footwear, bag industries. It creats accurate garment, shoe, bag patterns on standard pattern paper, cardboard, PVC, plastic, etc.

KEY FUNCTIONS

1.Multi-functional cutting tool, be able to do complete cutting, half cutting, kiss cutting, and dot cutting;

2.Drawing lines, letters and marking patterns or marks on materials by ball pen or oil pen.







APPLICATION



It is widely use in garment, footwear, gloves and bags industries.



AVAILABLE CUTTING MATERIALS

•Paper

•Cardboard

•PVC

•Kraft Paper

•Kraft Board

•Sticker



Materials can be cut



  • Corrugated paper
  • PVC expansion sheet
  • Adhesive sticker
  • Postage stamp gum
  • Photo frame paper
  • KT board
  • Grey cardboard
  • Honey comb plate
  • Arcylic
  • Foam
  • other soft material......

Optional

Video registration system, feeding and blanking system.
