High Speed Flatbed Digital Cutter Steel Structure With USB Port 1200 Mm/S

I'm Online Chat Now

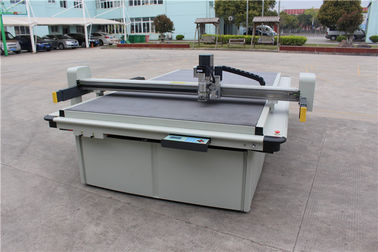

High Speed Flatbed Digital Cutter Steel Structure With USB Port 1200 Mm/S

China High Speed Flatbed Digital Cutter Steel Structure With USB Port 1200 Mm/S supplier
High Speed Flatbed Digital Cutter Steel Structure With USB Port 1200 Mm/S supplier High Speed Flatbed Digital Cutter Steel Structure With USB Port 1200 Mm/S supplier

Large Image :  High Speed Flatbed Digital Cutter Steel Structure With USB Port 1200 Mm/S

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCF70X

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Foam Digital Cutter Model: DCF701509
Effective Cutting Area: 1500mm*900mm Max Aped: 1200mm/s
Smallest Cutting Diameter: 5mm Maximum Cutting Thickness: 35mm

High speed Composite Cutting Machine / Flatbed Digital Cutter, digital cut, oscillating knife cut



Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.



Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.





Main Features

1.The felt convey belt of our product is imported and the material transportation system is of high efficiency.

2,.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

3.New steel structure, suit for production use.



Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.



Optional

Video registration system, feeding and blanking system.
