|Product Name:||Laser Position Paper Box Cutting Machine||Model:||DCH301512|
|Effective Cutting Area:||1500*1200mm||Driver:||Step Motor|
|Driving Material:||Import Steel Belt||Cut Materials:||Red Hard Paper、plastic Board、white Board、kraft Paper、thin PVC|
laser position paper box cutting machine digital preprint cut creasing plot flatbed digital cut vacuum pump

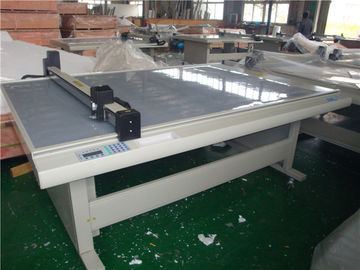

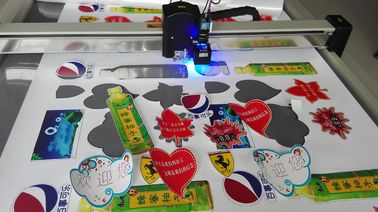

The DCH30 series laser position paper box cutting machine is developed from the product of DCH10 series Apart from the functions same with that of DCH10, this range of paper box cutting equipment is also designed with the function of laser positioning, making the product particularly suitable for cutting the printed PVC board and cardboard. Accurate positioning is realized through perfect matching between the laser and the preprinted mark on the printed material This laser position paper box cutting machine is distinguished by high accuracy and simple operation. In addition to cost saving for cutting mould, this paper box cutter supports convenient adjustment and fast speed, helping user to win orders easily. This product also called box sample maker, PVC box sample maker, sample maker, Ads cutting machine and so on, according to the different cutting material and application.
Packaging, Graphic, Ads.
1.Dual tool head: press roll and special knife
2.It supports material cutting and creasing at one stroke.
3.Low maintenance cost
4.Simple operation, accurate positioning
card paper, foam, thin PVC, grey board etc.
|Effective cutting area||900*600mm||1200*900mm||1500*1200mm|
|Configuration||Pen, special knife, creasing tool, laser position|
|Way of fixing paper way||Vacuum absorbing|
|Driving material||Import steel belt|
|Cut materials||Red hard paper,plastic board,white board,kraft paper,thin PVC|
|Cutting way||Drawing by pen,half cutting,whole cutting|
|Working time and character||Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.|
|Transmitting port||International standards: parallel port/RSC232 serial port|
|Instruction set||International standards: HP-GL or DXF format can be selected,|
|Numerical control board||LTD, all-English operating menu|
|Voltage||AC 220V±10% 50Hz|
|Note||Other size can be customized.|
