Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes

I'm Online Chat Now

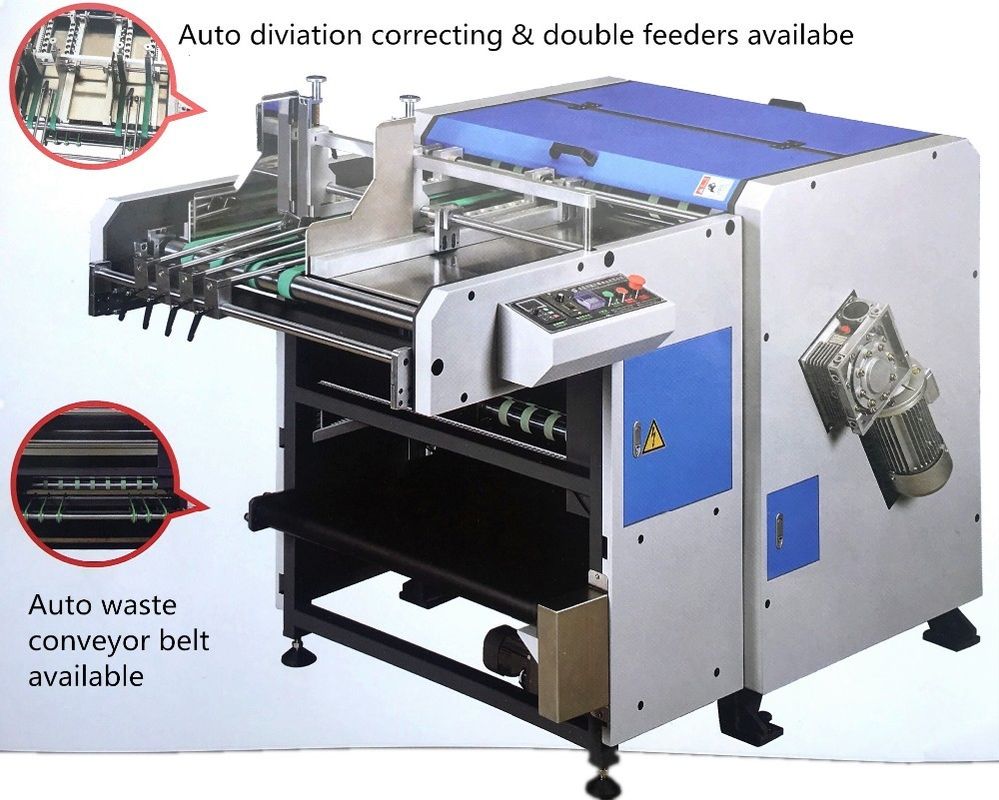

Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes

China Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes supplier
Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes supplier Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes supplier

Large Image :  Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: LS-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Contact Now
Detailed Product Description
Working Speed: 40m/min (150-200 Pcs/min) Carboard Size: 140*120-800*600mm
Cardboard Thickness: 1-4mm MDF Thickness: 3mm (MAX)
Usage: V-slitting Packaging: Wooden Box

Atomatic aligning feeding V grooving machine digital carton paper grooving machine for making rigid boxes



Introduction

LS-1200B Automatic high speed grooving machine is newly invented based on the experience of older roller groover. We apply the new technology which uses some belts to bind the card board and the roller together to convey the cardboard. This technology makes the groove straight and correctly. Thereby the products are on great quality.



Advantage



High speed
Automatic feeding
Dustless and no noise
Automatic collecting
No rough edge
Automatic aligning
Grooving angle adjustable from 75°to 140°



Product range



1--4mm cardboard
1--3mm MDF
0.4--1mm thin paper
Triangle cardboard

Machine Parts

Name: Wireless belt

Original: Italy

The autpmatic feeding part has applied the wireless belt which is imported from Italy. It has higher friction force and durable. It doesn`t need to adjust the pressure of each belt. so that will save the time to adjust machine.





Main Features



Name: Self --alligh system
Original: China
It is applied the iron shot and spring to convey the cardboard to the grooving area. This system ensure the cardboard go straight and keep the accuracy of cardboard grooving.

Name: Big roller
Original: China
The diameter of this roller is 60cm. It can groove the cardboard size at 140*120mm to 800*600mm. After applying the roller and belt to convey the cardboard, the grooving speed become faster.

Name: Blade holder
Original: China
It is using for hold the blade. The distance between blade and roller is adjustable



Specification



Quantity of Groove at a time 8 slots
Working speed 40m/min (150-200 pcs/min)
Cardboard size 140*120-800*600mm
Cardboard thickness 1-4mm
MDF Thickness 3mm (MAX)
Grooving distance (min) 0
Angle of the grooves 75°-140°
Machine Dimension 2015*1320*1350

After sale service

Our company can support one year warranty. The engineer can supply oversea after sale service during one year warranty.





samples





Dustless V Grooving Machine Atomatic Aligning Feeding For Making Rigid Boxes
