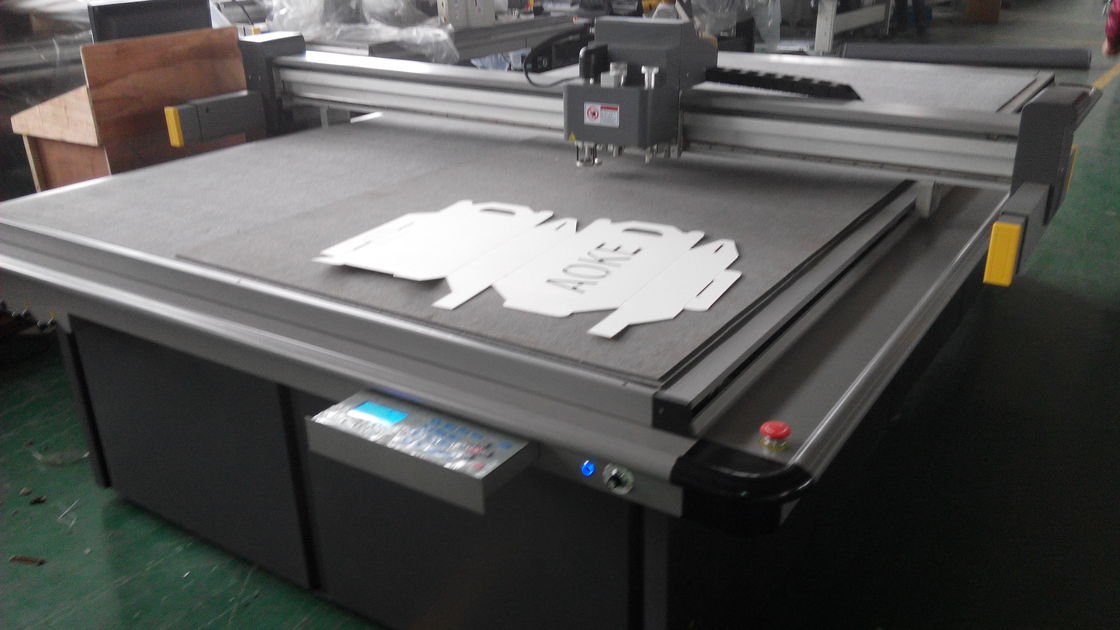

Digital Vacuum Table Corrugated Box Making Machine Automatic Drawing Creasing

Digital Vacuum Table Corrugated Box Making Machine Automatic Drawing Creasing

Digital Vacuum Table Corrugated Box Making Machine Automatic Drawing Creasing
Digital Vacuum Table Corrugated Box Making Machine Automatic Drawing Creasing Digital Vacuum Table Corrugated Box Making Machine Automatic Drawing Creasing

Large Image :  Digital Vacuum Table Corrugated Box Making Machine Automatic Drawing Creasing Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Computerized Paper Box Cutting Machine Model: DCZ701713-100
Effective Cutting Area: 1700*1300mm 1300*1000mm Max Aped: 1300mm/s
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm
High Light:

cardboard box making machine

,

corrugated box cutting machine

,

computerized corrugated cutting machine

flatbed digital cut uv printer cutter automatic drawing creasing digital table Vacuum table computerized



Introduction:

DCZ70 series high speed Paper Box Cutting machine is our newly developed carton box sample making system with performance greatly improved compared with the original design. It not only offers better processing speed, higher processing precision, and more convenient operation, but also gorgeous appearance Materials like corrugated board, chipboard, foam board, plastic board, thin wood board, leather, cloth, etc, can be cut with our cutter. DCZ70 series sample making machine can be used for cutting, creasing and drawing and is widely suitable for sample making or small scale production in packaging sector and manufacturing industries like corrugated box, color box, color printing, die cutting and the like. Because of its excellent performance, it enjoys sound reputation among our clients in packaging, advertising, printing, die cutting, electron, gasket, and sign industries. Moreover, the DCZ70 series has gained great support from Shanghai Technology Small and Medium Enterprises Technical Innovation Fund. The machine is equipped with plotting pen, oscillating cutting tool, creasing tool, drag knife tool to meet customers' various requirements The convenience of assembly and disassembly among different tools has greatly improved the working efficiency of operators. Additionally, the heavy duty drag knife tool, V cutter tool, foam cutter tool could be used for special materials of different industries. This product also called box sample maker, sample maker, Ads cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application.



Main Features:

1 With two interchangeable tools and whole sets head design, DCZ70 series high speed digital flatbed cutter features convenience to change the cutting tools

2 Its four spindles high speed controller employs modularized installation and comes with convenient maintenance

3. The cutting thickness and cutting speed are both easily set. Besides, the cutting depth is adjustable according to clients' requirements

4.Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet etc.

Application:

Packaging, Graphic.



Specification:

Model DCZ702516 DCZ701713 DCZ701310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing tool,drag knife
Max aped 1350mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, V cut knife, foam knife
Occupy dimension(L*W*H) 3400*2460*1180mm 2600*2160*1180mm 2200*1860*1180mm
Note Other size can be customized.





FAQ

1. How long can I get the feedback after we send the inquiry?
A:We will reply you within 12 hours.
2. Are you a factory?
A:Yes, We are. We have devoted in this field over 20 years.
3. Where is your factory? How can I visit you?
A:We are in Shanghai, we can pick you up from airport or train station if you come to visit us.

Any question, pls feel free to make me know.
