Sample Corrugated Box Making Machine / Cardboard Plotter Cutter Customized Size

I'm Online Chat Now

Sample Corrugated Box Making Machine / Cardboard Plotter Cutter Customized Size

China Sample Corrugated Box Making Machine / Cardboard Plotter Cutter Customized Size supplier
Sample Corrugated Box Making Machine / Cardboard Plotter Cutter Customized Size supplier Sample Corrugated Box Making Machine / Cardboard Plotter Cutter Customized Size supplier

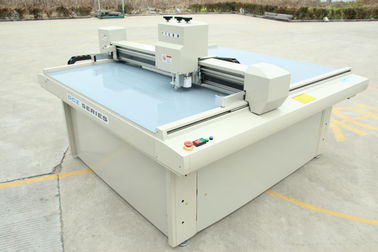

Large Image :  Sample Corrugated Box Making Machine / Cardboard Plotter Cutter Customized Size

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCZ50

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Flatbed Digital Cutter Model: DCZ501713-19
Effective Cutting Area: 1700*1300mm Max Aped: 1250mm/s
Cut: Cardbaord Maximum Cutting Thickness: 30mm

Paper box carton sample making machine cardboard plotter cutter PP sheets graphic cuting machine box maker

ABOUT US



1.20 years of experience in CNC cutting technology;

2.The first and biggest CNC cutting machine manufacturer in China;

3.We focus on the research and development of CNC knife-cutting technology and related CAD software over the past 20 years;

4.The quality and service are regarded as the life of our corporation;

5.We will never be satisfied until you are satisfied;

6.Our engineering team never stop to improve our machine and upgrade our software;

7.AOKE is based in Shanghai, aiming at the global market.

description

a.DCZ50 series paper box carton sample making machine is AOKE new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.



Specification

Model DCZ502516 DCZ501713 DCZ501310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing wheel,drag knife
Max aped 1000mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 15mm
Control line and driver Servo
Precision ≤0.1mm
Vacuum 5.5kw
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port PCI port
Data Transmission speed 10MB/s
Input cushion area 32MB
Occupy dimension(L*W*H) 3165*2545*1250mm 2365*2245*1250mm 1960*1935*1250mm
Note Other size can be customized.





The main character of DCZ50 is as following:

I·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.

II·Carton and box can reach to perfect cutting performance

III·Convenient half cut set to achieve perfect half cutting performance

IV·Safety guard system is equipped to avoid injury

V·Brunt model sold well in EU and USA market
