Small Size rigid Box Forming Machine High Output Fast Speed Cycle With Fool Boot Model

Box Making Machine/Box Forming Machine/Rigid Box Making automatic Paper Rigid Box Making Jewelly box making machine

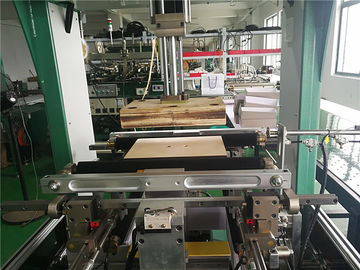

Automatic box wrapping machine is accessory equipment for making rigid box,gift boxes,packaging boxes,with advantages of small size,easy operation,fast speed cycle.this machine can automatically start to edge fold and forming and wrap of box.The advance PLC and variable frequency can freely control its speed and it equipment with safety device to ensure fast and safe production.uses the electric brushes to make the output rigid boxes more tightly and smoothly.

The main shaft and mold stretch are all driven by servo motors and guarantee a quiet and stable operation circumstance and smooth mechanical process

The motion of main shaft adopts the structure of skew rack, so it’s very stable, accurate, strong, high efficiency, long life

Folding corner edge is up to 100mm as standard, and this is controlled by rails and cylinder, which is adjustable and precision.

Controlled by PLC, which formulas memory, it costs only 15 minutes to change the other box plate.

Optical grating transducer protects the operator from operation injury.

Table board and frame are processed by CNC by one time and enjoy durable quality

1.Intelligent adjustment, it can change mould within 30minutes which is very fast; Suitable for making different kind of boxes in one day;

2. Adopts high precision ceramic glue roller with heating function, using less glue but coating evenly, and solve the winter animal glue problem such as poor liquidity, wire drawing, not sticky;

3. Accurate positioning: +/-0.2mm tolerance;

4. Time of the pressure on the boxes can be set freely, each nose can be lowered or raised, can rotate at any angle, the products without bubbles, slack side and scratched;

5. One minute can adjust the pre-production box size with intelligent memory function and can produce within 15 minutes;

6. It's used to make high quality electronic products packaging, cosmetic box, wine box, shoe box, apparel box etc

7. High output, it can make ≤30pcs boxes per minute with supreme quality.

8. It can make some typical boxes, folding deeper boxes, such as rugged boxes, trapezoidal boxes, with window boxes.

9. Fool boot model, greatly reduces the starting difficulty, flexible and convenient

This machine is designed for packaging boxes,such as jewellery box, gift box, mobile box, tea box, moon cake box, bottom and cover box to press the bubble of the finished rigid boxes.

Performance:

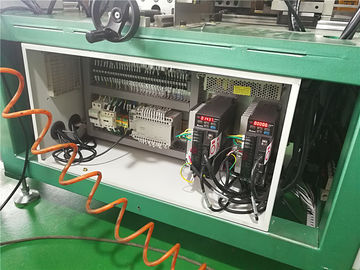

1,The machine is completed by a servo motor, PLC programmable control.

2,The machine commissioning completed by the HMI selective, simple and easy to adjust.

3,The machine control accessories for all full use of international high-end brands, the failure of low and high accuracy.

4,The machine with a fault alarm functions, such as and part of the failure, the alarm will whistle, fault will be displayed on the screen.

5,The machine can touch with emergency stop switch, if an emergency press stops automatically.

Service:
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

Technical Parameters:
