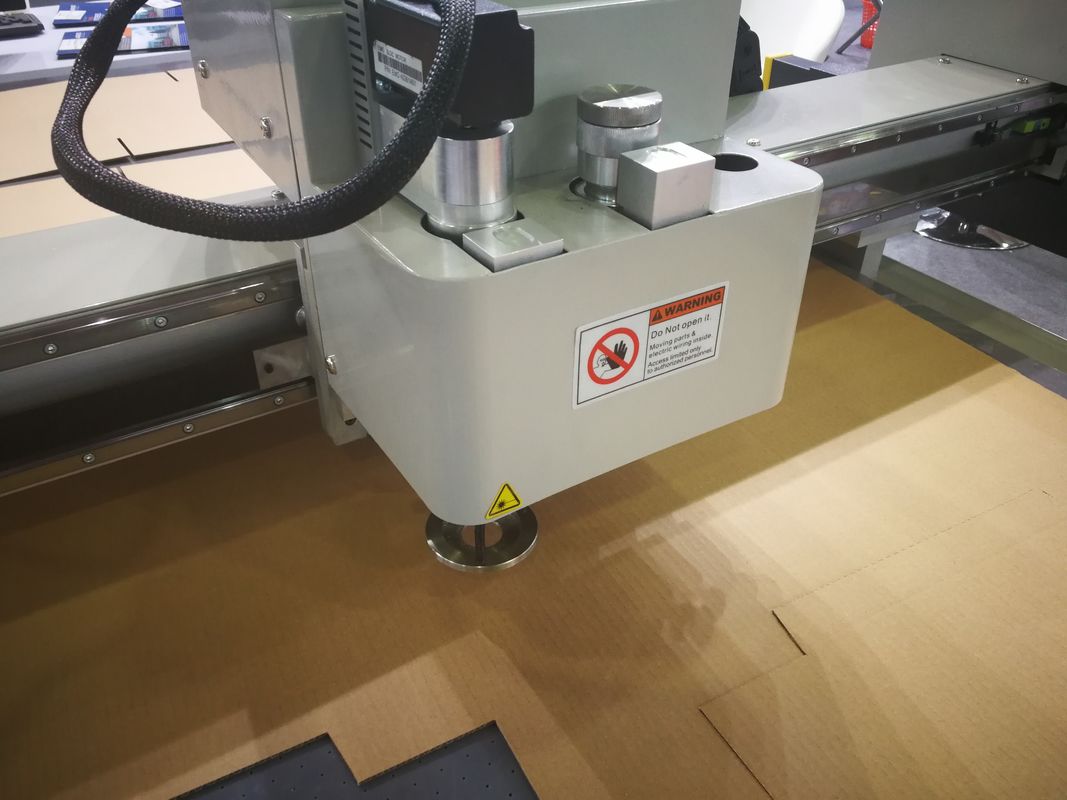

Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter

Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter

Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter
Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter

Large Image :  Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Oscillating Knife Leather Cutting Machine , Flatbed Digital Cutte Model: DCZ7X 4022
Effective Cutting Area: 2500*1600mm 1700*1300mm 1300*1000mm Max Aped: 1400mm/s
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm
High Light:

flatbed digital cutting machine

,

fabric cutting machine

leather Cutting machine  Flatbed digital cutter oscillating knife Cutting machine leather

Description:



Main Features:

1. Our high speed digital flatbed cutter consists of two independent modules and its cutting tools are interchangeable.

2. Table of this digital corrugated board cutter is designed with a new vacuum zone and adopts steel frame instead of the original

section material frame. This new design endows the cutting machine with stronger suction capacity and more stable mechanical

property

3. Automatic tool setting system makes tool replacement more convenient. After replacing the knife tools, you just need to press the

button and then depth of the knife tool will be set automatically. In this way, damaged to the cutting table caused by manual operation

error will be avoided

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet etc.

Application:

Ads, Display, Packaging, Graphic.

Specification:



Model DCZ7602516 DCZ701713 DCZ701310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 60mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system
Occupy dimension(L*W*H) 3500*3200*1400mm 2700*2900*1400mm 2300*2600*1400mm
Note Other size can be customized.





Cutting Samples:

How to Take Care of Your Cutting Machine

1. Choose a good environment for AOKE cutting machine, it should not be placed in a strong lit place, to avoid direct sunlight in case of the breakage of countertops and affect of the machine’s use life.
2. Clean the cutting machine countertops regularly to prevent suction outlet to be blocked (Do not pour the alcohol directly into the countertop).
3. Apply periodical maintenance, optimization and antivirus works on computer system.The unstable computer system will also affect normal operation of the cutting machine.
4. Do not place weight, scissors, or other objects on the cutting machine, so as not to hit the machine tool head when starting AOKE cutting machine.
5. Do not press heavy load down on both sides of the cutting machine table tracks and beams so as not to damage the track.
6. Avoid the plug and unplug of AOKE cutting machine by the electric cable, Strictly prohibit unplug online electric cable. Otherwise it will damage the cutting machine or computer
7. When AOKE cutting machine is running, do not put your hands close to the head to avoid accidents.



Optional

Video registration system

Oscillating Knife Leather Composite Cutting Machine , Flatbed Digital Cutter 0
