Product Details:
Payment & Shipping Terms:
|
| Product Name: | Half Cutting Plotter | Model: | DCH101509 |
|---|---|---|---|
| Effective Cutting Area: | 1500mm*900mm | Driver: | Step Motor |
| Driving Material: | Import Belt | Cut Materials: | Regid Board、paper Sheet、plastic Sheet |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
| Cutting Thickness: | Less Than 100mm | Cutting Thickness: | Less Than 100mm |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| TABLE: | Flatbed, Conveybelt, | ||
| High Light: | die cutting equipment,desktop die cutting machine |
||
Film cutting machine digital computerized color print cut plot computerised step motor digital control vacuum pvc
Introduction

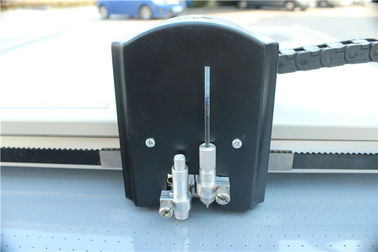

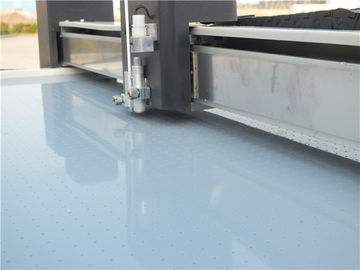

Particularly offered for cutting and making samples for cardboard and plastic box, the DCH10 series paper box cutting machine is applicable for the processing of thin material. Though the application scope is small, the paper box making machine is capable of helping users to save the production cost for sample making, especially for some specific industries. The paper box cutting machine consists of special knife, press roll, and plotting pen for the processing of paperboard and rubber plate Apart from that, the paperboard cutting equipment can be used as the cutting plotter. This product also called box sample maker, PVC box sample maker, sample maker, cutting plotter and so on, according to the different cutting material and application.
Main Features
Steel belt drive ensures high accuracy.
Complete tools for manufacturing nice and attractive packaging
Trundle for easy movement of the product
INNOVATIVE FEATURES
1. AOKE CNC cutting machines use imported American CPU and precise eletronic components, meeting world leading level in terms of machines stability and operability.
2. Self developed built in CNC control system.
3. File format can be DXF, PLT and any CAD software with HPGL format
4. 8 groups of knives and pen arrangement provides cutting solution for different material with different thickness
5. AOKE CNC cutting machines equipped with imported linear guiderail, famous driving motors. It is fast, accurate, smooth.
Benefits
1. Easy to use
. Saves time and money whilst improving quality

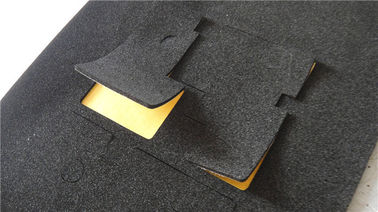

Cutting materials:
card paper, foam, thin PVC, grey board etc.
FAQ
1. How long can I get the feedback after we send the inquiry?
A:We will reply you within 12 hours.
2. Are you a factory?
A:Yes, We are. We have devoted in this field over 20 years.
3. Where is your factory? How can I visit you?
A:We are in Shanghai, we can pick you up from airport or train station if you come to visit us.
Any question, pls feel free to make me know.
Application:
Packaging
Specification
|
Model |
DCH100906 |
DCH101209 |
DCH101512 |
|
Effective cutting area |
900*600mm |
1200*900mm |
1500*1200mm |
|
Driver |
Step motor |
||
|
Configuration |
Pen, special knife, creasing tool |
||
|
Way of fixing paper way |
Vacuum absorbing |
||
|
Driving material |
Import steel belt |
||
|
Cut materials |
Red hard paper,plastic board,white board,kraft paper,thin PVC |
||
|
Cutting way |
Drawing by pen,half cutting,whole cutting |
||
|
Cutting thickness |
0.5-2mm |
||
|
Cutting precision |
≤0.1mm |
||
|
Max speed |
1000mm/s |
||
|
Working time and character |
Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data. |
||
|
Transmitting port |
International standards: parallel port/RSC232 serial port |
||
|
Capacity of buffer area |
Buffer area of large capacity, it can finish high-speed transmission for data at a time |
||
|
Instruction set |
International standards: HP-GL or DXF format can be selected, |
||
|
Numerical control board |
LTD, all-English operating menu |
||
|
Voltage |
AC 220V±10% 50Hz |
||
|
Fuse standard |
5A |
||
|
Occupy dimension(L*W*H) |
1335*1065*1080mm |
1635*1365*1080mm |
1935*1665*1080mm |
|
Note |
Other size can be customized. |
||
Optional
Video Registration System
