|Product Name:||Pattern Making Machine||Model:||DCG701512|
|Effective Cutting Area:||1500mm*1200mm||Application:||Electronic Pattern Cut|
|Smallest Cutting Diameter:||1.6mm||Maximum Cutting Thickness:||1.5mm|
die cutting equipment,
electronic die cutter

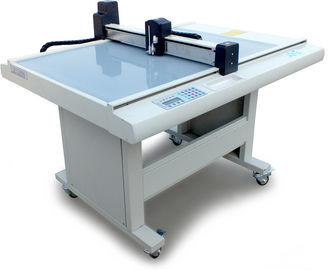

DCG70/DCG71 series pressure control electronic die cutting machine:
The DCG70/DCG71 series pressure control electronic die cutting machine offers sample making solutions for the electronic industry In addition to the function of the product of DCG50/DCG51 series, the pressure control electronic die cutter is engineered with pressure control tool head and laser positioning system, to realize accurate control and positioning. Apart from optimal cutting effect, our pressure control electronic die cutting machine also improves the cutting quality. Thanks to the pressure control technology, influence on the cutting quality caused by worktable smoothness can be fully eliminated through pressure setting. So, perfect through and half cutting effect can be obtained Applicable for printing circuit board and electronic material, DCG70 series adopts vacuum pump to hold the material, while the DCG71 electronic die cutting machinery by electrostatic board. This product also called electronic die cutting machine, die plotter, adhesive cutting machine, film cutting machine and so on, according to the different cutting material and application.
1. Comparison with die cutting machine
Saving cost for mould making and knife sharpening; Convenient adjustment
2. Comparison with laser cutting machine
Little black edge, Little scorch for thin material; Full elimination of dazzling light, Low production cost
3. Special functions of pressure control electronic die cutting machine
Capable of completing through and half cutting atone stroke; Cutting accuracy up to 0.05mm, Plotting is available, Capable of completing creasing and cutting in one time if equipped with creasing tool; Accurate positioning for cutting various kinds of electronic materials; The cutting knife is controlled by pressure for perfect half-cutting effect.
3M double-side adhesive, photo-electric materials (shading, diffuse, reflect), insulating material film switch.
Electronic die, laser die etc.
|Effective cutting area||1200*900mm||900*600mm||1200*900mm|
|Configuration||Pen, pressure control knife, laser position|
|Way of fixing paper way||Vacuum absorbing||Electrostatic|
|Transmitting port||parallel port/RSC232 serial port|
|Instruction set||HPGL DXF|
|Note||Other size can be customized.|
Video registration system
