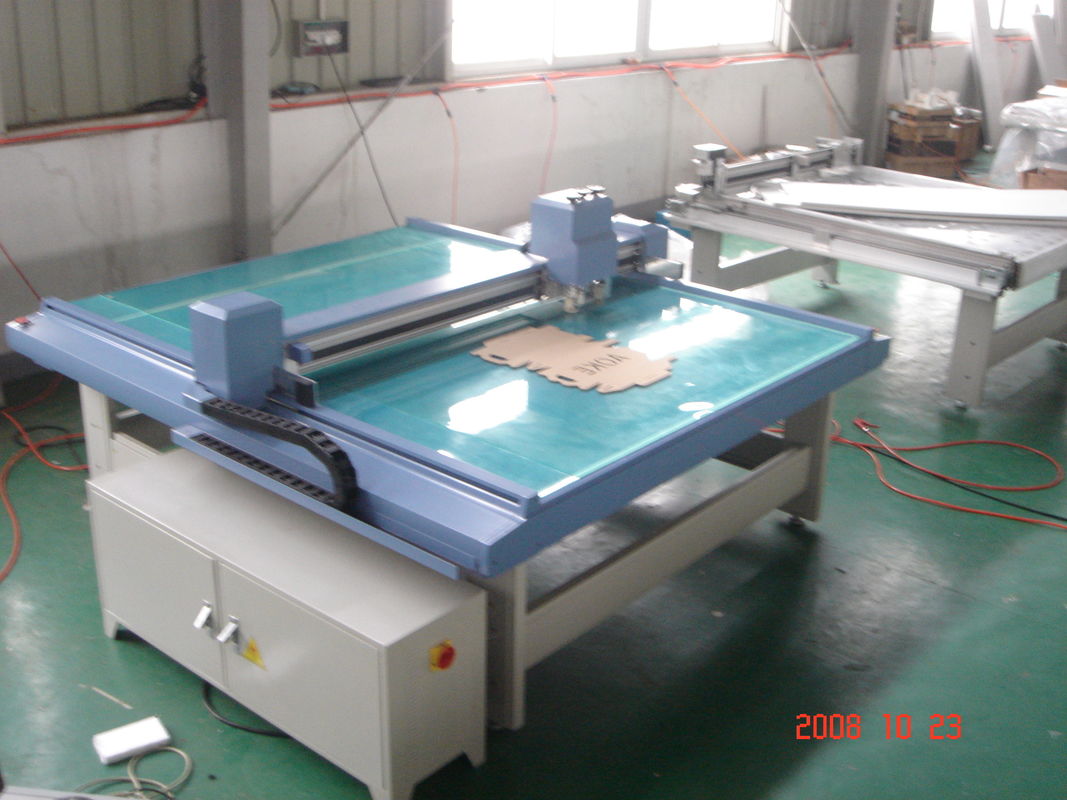

Vacuum Pump Holding Pattern Making Machine Automatic Drawing Creasing

Vacuum Pump Holding Pattern Making Machine Automatic Drawing Creasing

Vacuum Pump Holding Pattern Making Machine Automatic Drawing Creasing
Vacuum Pump Holding Pattern Making Machine Automatic Drawing Creasing

Large Image :  Vacuum Pump Holding Pattern Making Machine Automatic Drawing Creasing Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Electronic Sample Die Making Machine Model: DCZ501310
Effective Cutting Area: 1300*1000mm Max Aped: 1000mm/s
Smallest Cutting Diameter: 2mm Maximum Cutting Thickness: 3mm
High Light:

die cutting equipment

,

electronic die cutter

Electronic Die Cutting machine flatbed cut automatic drawing creasing vacuum pump holding



description

DCZ50 series paper box carton sample making machine is AOKE new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.

The main character of DCZ50 is as following:

·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.

·Carton and box can reach to perfect cutting performance

·Convenient half cut set to achieve perfect half cutting performance

·Safety guard system is equipped to avoid injury

·Brunt model sold well in EU and USA market



Specification

Model DCZ502516 DCZ501713 DCZ501310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing wheel,drag knife
Max aped 1000mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 15mm
Control line and driver Servo
Precision ≤0.1mm
Vacuum 5.5kw
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port PCI port
Data Transmission speed 10MB/s
Input cushion area 32MB
Occupy dimension(L*W*H) 3165*2545*1250mm 2365*2245*1250mm 1960*1935*1250mm
Note Other size can be customized.



1. Oscillating cutting knife, accurate and professional cutter for soft materials;
2. Marking pen.
3. Hobbing cutter, specialized in fabric cutting.
4. V-cutter, cut grooves for carton.
5. Milling-cutter, for relatively hard materials, eg: Acrylic.
6. Creasing wheel, for making folding lines.
(1 and 2 are standard configuration, 3 to 6 are optional.)





ABOUT US



1. 20 years of experience in CNC cutting technology;

2.The first and biggest CNC cutting machine manufacturer in China;

3. We focus on the research and development of CNC knife-cutting technology and related CAD software over the past 20 years;

4.The quality and service are regarded as the life of our corporation;

5. We will never be satisfied until you are satisfied;

6. Our engineering team never stop to improve our machine and upgrade our software;

7. AOKE is based in Shanghai, aiming at the global market.



GUARANTEE & AFTER SALE SERVICE

1. One year guarantee for whole machine except consumables such as knife blade, mat.

2. You are welcome to our company to have a professional trainning and observation.

3. Calling or door-to-door service.

4. 24 hour online and hot line services.

  1. Use friendly-English software, usual manual and detailed videos.
  2. Vacuum Pump Holding Pattern Making Machine Automatic Drawing Creasing 0
