Product Details:
Payment & Shipping Terms:
|
| Product Name: | Sofa Fabric Cutting Machine | Model: | DCF70X 1713-1023 |
|---|---|---|---|
| Effective Cutting Area: | 2500*1600mm 1700*1300mm 1300*1000mm | Max Aped: | 1200mm/s |
| Smallest Cutting Diameter: | 6mm | Maximum Cutting Thickness: | 60mm |
| High Light: | flatbed digital cutting machine,fabric cutting machine |
||
Composite Cutting machine EVA oscillating knife carpet cut carben fiber convey belt gasket cut leather cut foam
Introduction:

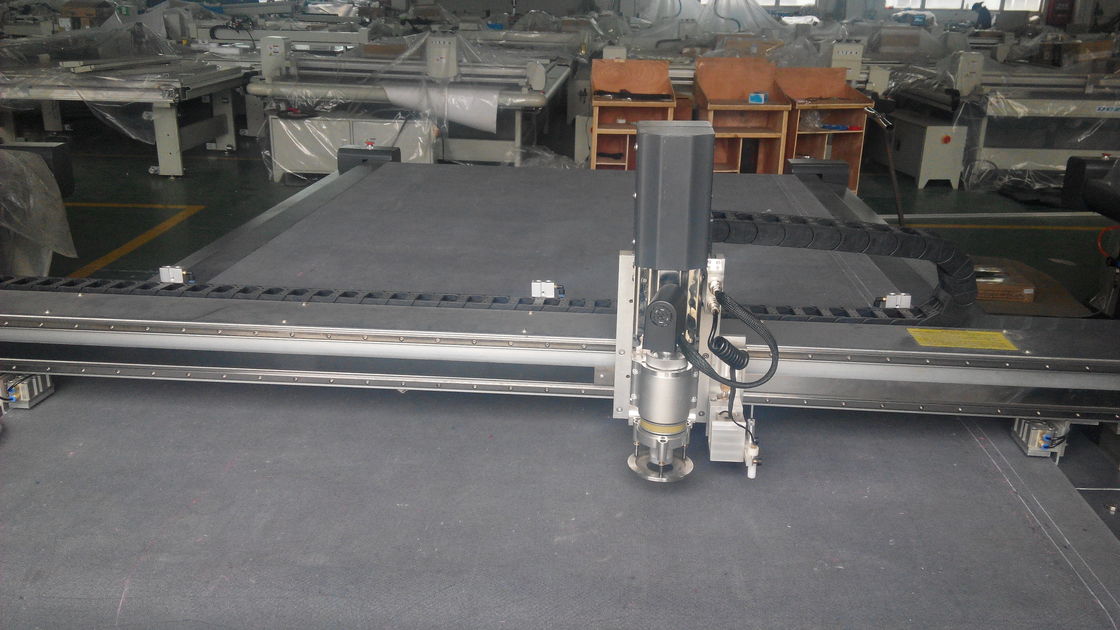

DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.
Main Features
a.Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.
b.New steel structure, suit for production use.
c.The felt convey belt of our product is imported and the material transportation system is of high efficiency.
4.Cutting materials:
Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.
Application:
Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.
Specification
| Model | DCF732516R | DCF731713R | DCF731310R |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
| Configuration | Oscillating knife,pen,convey system | ||
| Max aped | 1400mm/s | ||
| Smallest cutting diameter | 6mm | ||
| Maximum cutting thickness | 30mm | ||
| Control line and driver | Servo | ||
| Precision | ≤0.1mm | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10%50Hz | ||
| Data port | parallel port,serial port,USB port | ||
| Option | Video registration system, feeding and blanking system | ||
| Occupy dimension(L*W*H) | 3500*3200*1400mm | 2650*2900*1400mm | 2200*2570*1400mm |
| Note | Other size can be customized. | ||
GUARANTEE & AFTER SALE SERVICE
1.One year guarantee for whole machine except consumables such as knife blade, mat.
2.You are welcome to our company to have a professional trainning and observation.
3.Calling or door-to-door service.
4.24 hour online and hot line services.
After-sale service
First, warmly welcome you to our head office to have a professional training and observation.
We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
If you need help, you can send email to us or contact us by skype or MSN online chatting tools.
We offer 24h online service.
Optional
Video registration system, feeding and blanking system.
