Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation

Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation

Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation
Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation

Large Image :  Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Flatbed Digital Paper Box Cutting Machine Model: DCH300906-50
Effective Cutting Area: 900*600mm Driver: Step Motor
Driving Material: Steel Belt Cut Materials: Red Hard Pape
High Light:

box making equipment

,

gift box making machine

Flatbed Digital Paper Box Cutting Machine / flatbed cutting plotter, E corrugate cut pizza box

laser position paper box cutting machine digital preprint cut creasing plot flatbed digital cut vacuum pump



Introduction

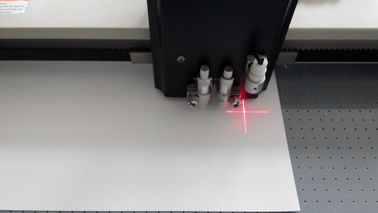

The DCH30 series laser position paper box cutting machine is developed from the product of DCH10 series Apart from the functions same with that of DCH10, this range of paper box cutting equipment is also designed with the function of laser positioning, making the product particularly suitable for cutting the printed PVC board and cardboard. Accurate positioning is realized through perfect matching between the laser and the preprinted mark on the printed material This laser position paper box cutting machine is distinguished by high accuracy and simple operation. In addition to cost saving for cutting mould, this paper box cutter supports convenient adjustment and fast speed, helping user to win orders easily. This product also called box sample maker, PVC box sample maker, sample maker, Ads cutting machine and so on, according to the different cutting material and application.



Application:

Packaging, Graphic, Ads.



Cutting materials:

card paper, foam, thin PVC, grey board etc.



Main Features

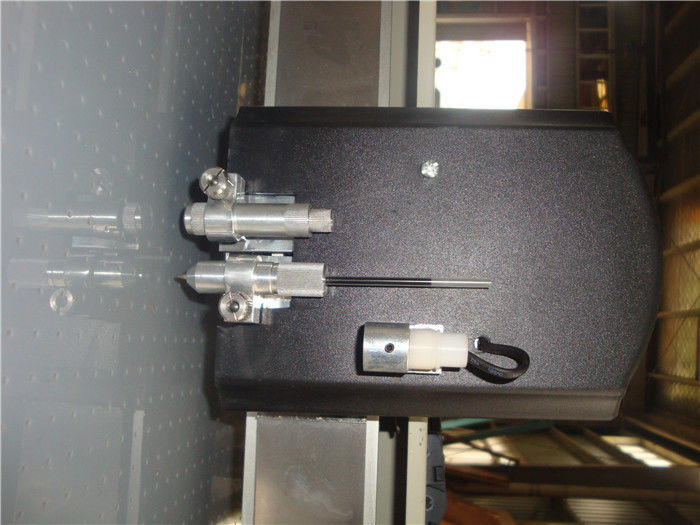

Dual tool head: press roll and special knife

It supports material cutting and creasing at one stroke.

Low maintenance cost

Simple operation, accurate positioning





Specifications

Model DCH300906 DCH301209 DCH301512
Effective cutting area 900*600mm 1200*900mm 1500*1200mm
Driver Step motor
Configuration Pen, special knife, creasing tool, laser position
Way of fixing paper way Vacuum absorbing
Driving material Import steel belt
Cut materials Red hard paper,plastic board,white board,kraft paper,thin PVC
Cutting way Drawing by pen,half cutting,whole cutting
Cutting thickness 0.5-2mm
Cutting precision ≤0.1mm
Max speed 1000mm/s
Working time and character Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.
Transmitting port International standards: parallel port/RSC232 serial port
Instruction set International standards: HP-GL or DXF format can be selected,
Numerical control board LTD, all-English operating menu
Voltage AC 220V±10% 50Hz
Fuse standard 5A
Occupy dimension(L*W*H) 1335*1065*1080mm 1635*1365*1080mm 1935*1665*1080mm
Note Other size can be customized.

Features:

The application of an English port makes Digital Pattern Cutting Solution fast and convenient.

High performance is guaranteed with the integrated circuit plate.

The linear guide of Digital Pattern Cutting Solution ensures high speed and few errors.

Digital Pattern Cutting Solution feature imported digital servo drivers and their SD cards offer mass storage.

The powerful compatible function enables connection with any kind of CAD software.

Digital Pattern Cutting Solution have an LCD touch screen in both English and Chinese.

Digital Pattern Cutting Solution feature intellective order printing.



Digital Paper Box Cutting Machine / Flatbed Cutting Plotter Simple Operation 0
