Product Details:
Payment & Shipping Terms:
|
| Product Name: | Flatbed Digital Cutter | Model: | DCZ50110-19 |
|---|---|---|---|
| Effective Cutting Area: | 1300*1000mm | Max Aped: | 1350mm/s |
| Smallest Cutting Diameter: | 6mm | Materials: | Alumunim |
| High Light: | box making equipment,gift box making machine |
||

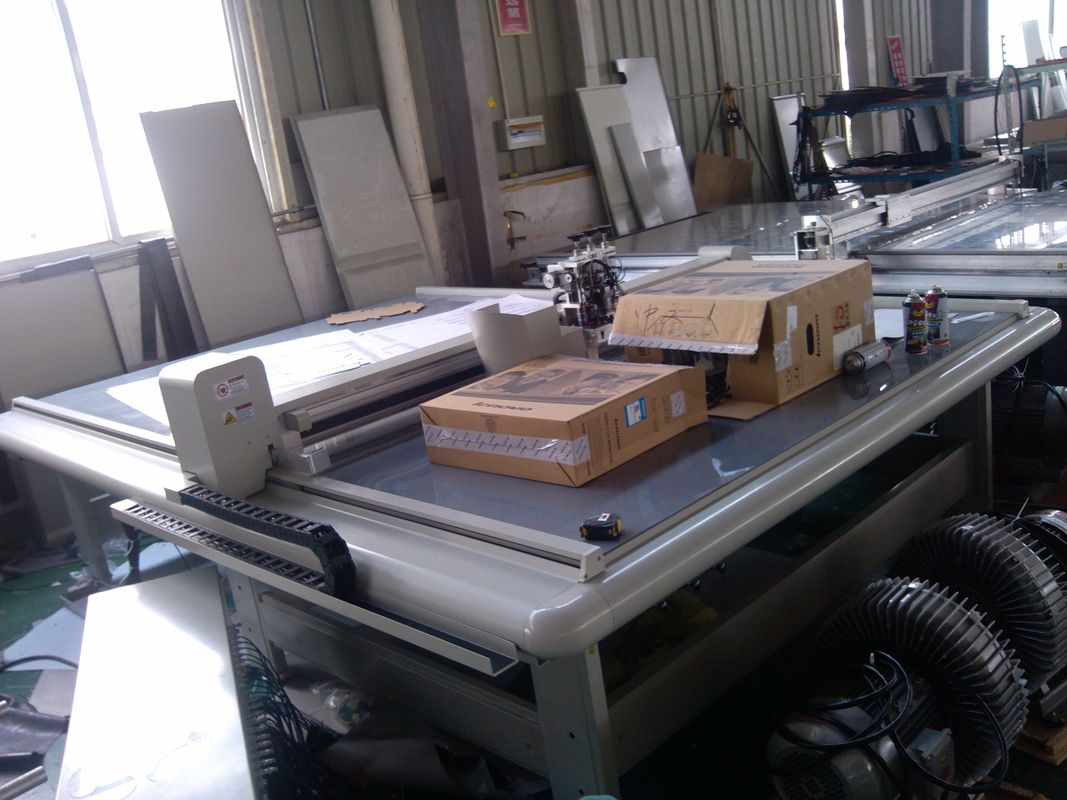

Flatbed digital cutter paper craft die cutting machine 16 degree blades cut within 15mm 4 scores folding
description
aDCZ50 series paper box carton sample making machine is AOKE new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.
Specification
| Model | DCZ502516 | DCZ501713 | DCZ501310 |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
| Configuration | Oscillating knife,pen,creasing wheel,drag knife | ||
| Max aped | 1000mm/s | ||
| Smallest cutting diameter | 6mm | ||
| Maximum cutting thickness | 15mm | ||
| Control line and driver | Servo | ||
| Precision | ≤0.1mm | ||
| Vacuum | 5.5kw | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10%50Hz | ||
| Data port | PCI port | ||
| Data Transmission speed | 10MB/s | ||
| Input cushion area | 32MB | ||
| Occupy dimension(L*W*H) | 3165*2545*1250mm | 2365*2245*1250mm | 1960*1935*1250mm |
| Note | Other size can be customized. | ||
1. Easy to use
·our tables are easy to install and simple to set-up and use. The table is programmed for use with our software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
2. Saves time and money whilst improving quality
· Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
· Greatly reduces the time taken to hand cut sample and graded paper patterns.
· Consistent accuracy throughout, utilizing the our CAD software, any modifications to the pattern can be re-cut quickly and efficiently.
· Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
The main character of DCZ50 is as following:

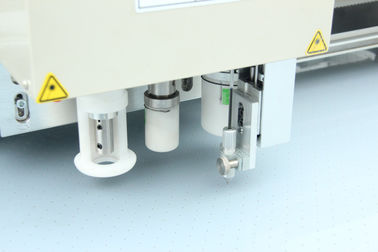

I·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.
II·Carton and box can reach to perfect cutting performance
III·Convenient half cut set to achieve perfect half cutting performance
IV·Safety guard system is equipped to avoid injury
V·Brunt model sold well in EU and USA market
1. Oscillating cutting knife, accurate and professional cutter for soft materials;
2. Marking pen.
3. Hobbing cutter, specialized in fabric cutting.
4. V-cutter, cut grooves for carton.
5. Milling-cutter, for relatively hard materials, eg: Acrylic.
6. Creasing wheel, for making folding lines.
(1 and 2 are standard configuration, 3 to 6 are optional.)
ABOUT US
1.20 years of experience in CNC cutting technology;
2.The first and biggest CNC cutting machine manufacturer in China;
3.We focus on the research and development of CNC knife-cutting technology and related CAD software over the past 20 years;
4.The quality and service are regarded as the life of our corporation;
5.We will never be satisfied until you are satisfied;
6.Our engineering team never stop to improve our machine and upgrade our software;
7.AOKE is based in Shanghai, aiming at the global market.
