Home ProductsPaper Box Making Machine

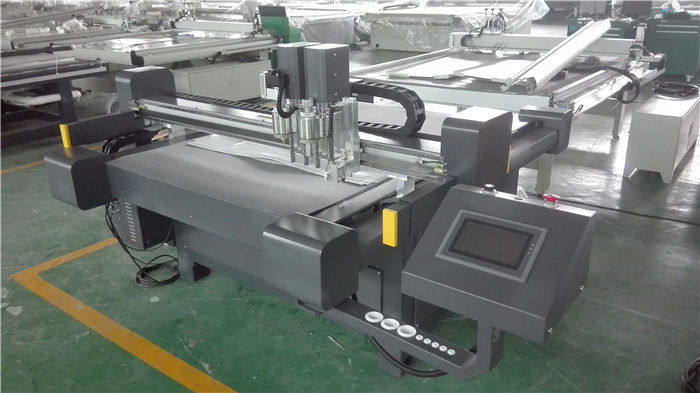

Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head

Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head

Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head
Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head

Large Image :  Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Foam Cutting Machine / Flatbed Digital Cutter Oscillating Knife Creasing Model: DCZ7X1713-20
Effective Cutting Area: 1700*1300mm Max Aped: 1400mm/s
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm
High Light:

sheet board cutting machine

,

gift box making machine

foam Cutting machine paper box cutting machine Flatbed digital cutter oscillating knife creasing Router Cutting machine



Description:



DCZ7X Series foam Cutting machine is a newly developed cutting system aiming at the industries like packaging, printing, advertisement, display, etc. Configured with versatile tools including oscillating knife, creasing wheel, drag knife, V cutting knife and pen, this high speed cutting equipment whose maximum cutting depth is 60mm, can be used to cut corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion board and other materials. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.

Main Features:

1. Our high speed digital flatbed cutter consists of two independent modules and its cutting tools are interchangeable.

2. Table of this digital corrugated board cutter is designed with a new vacuum zone and adopts steel frame instead of the original

section material frame. This new design endows the cutting machine with stronger suction capacity and more stable mechanical

property

3. Automatic tool setting system makes tool replacement more convenient. After replacing the knife tools, you just need to press the

button and then depth of the knife tool will be set automatically. In this way, damaged to the cutting table caused by manual operation

error will be avoided

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet etc.

Application:

Ads, Display, Packaging, Graphic

WHAT ARE THE FEATURES?



1. Tool Head

  • A dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.

2. Compatibality

  • Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leather wares.



FAQ

1. How long can I get the feedback after we send the inquiry?
A:We will reply you within 12 hours.
2. Are you a factory?
A:Yes, We are. We have devoted in this field over 20 years.
3. Where is your factory? How can I visit you?
A:We are in Shanghai, we can pick you up from airport or train station if you come to visit us.

Any question, pls feel free to make me know.

.

Specification:

Model DCZ762516 DCZ761713 DCZ761310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 60mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system
Occupy dimension(L*W*H) 3500*3200*1400mm 2700*2900*1400mm 2300*2600*1400mm
Note Other size can be customized.

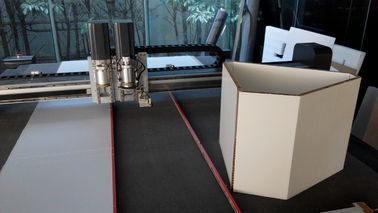

Cutting Samples:

Foam Router Cutting Machine / Flatbed Digital Cutter Dual Function Tool Head 0



Optional

Video registration system
