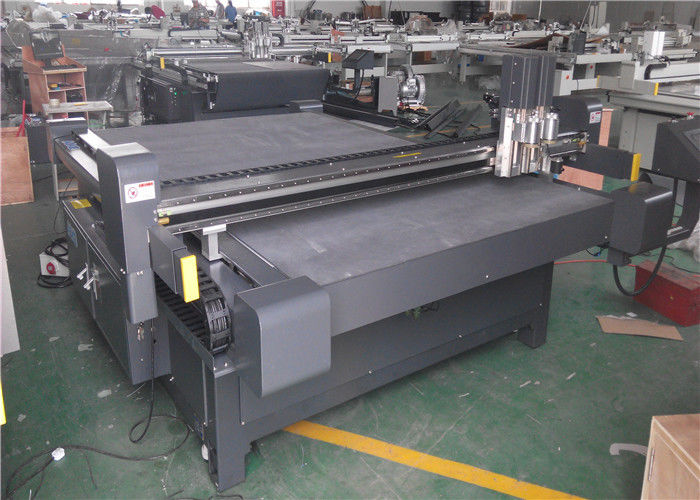

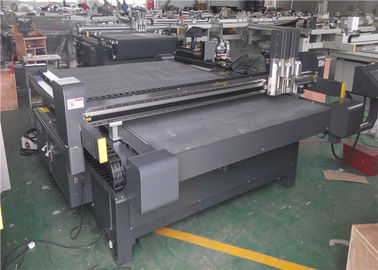

Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools

Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools

Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools
Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools

Large Image :  Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: CNC Cardboard Cutting Machine Model: DCZ7X2516
Effective Cutting Area: 2500*1600mm Max Aped: 1.4m/s
Smallest Cutting Diameter: 6mm Cut: Oscillating Knife
High Light:

sheet board cutting machine

,

gift box making machine

DCZ7X Series CNC cardboard cutting machine for Ads , Display , Packaging, honeyboard, corrugated papers, EVA, Graphic



Description:



This DCZ7X series high speed digital flatbed cutter is a newly developed cutting system aiming at the industries like packaging, printing, advertisement, display, etc. Configured with versatile tools including oscillating knife, creasing wheel, drag knife, V cutting knife and pen, this high speed cutting equipment whose maximum cutting depth is 60mm, can be used to cut corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion board and other materials. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.

How to Take Care of Your Cutting Machine

1. Choose a good environment for AOKE cutting machine, it should not be placed in a strong lit place, to avoid direct sunlight in case of the breakage of countertops and affect of the machine’s use life.
2. Clean the cutting machine countertops regularly to prevent suction outlet to be blocked (Do not pour the alcohol directly into the countertop).
3. Apply periodical maintenance, optimization and antivirus works on computer system.The unstable computer system will also affect normal operation of the cutting machine.
4. Do not place weight, scissors, or other objects on the cutting machine, so as not to hit the machine tool head when starting AOKE cutting machine.
5. Do not press heavy load down on both sides of the cutting machine table tracks and beams so as not to damage the track.
6. Avoid the plug and unplug of AOKE cutting machine by the electric cable, Strictly prohibit unplug online electric cable. Otherwise it will damage the cutting machine or computer
7. When AOKE cutting machine is running, do not put your hands close to the head to avoid accidents.





Common Blades Application

Blade Thickness Material
16 Degrees Blade Less Than 15MM Double Wall Corrugated Paper
Triple Wall Corrugated Paper
Honeycomb Board
26 Degrees Blade Less Than 10MM E Wall Corrugated Paper
B Wall Corrugated Paper
Double Wall Corrugated Paper
White Cardboard
Kraft Paper
E Wall Corrugated Paper
B Wall Corrugated Paper
Double Wall Corrugated Paper
39 Degrees Blade Less Than 3MM White Cardboard
Grey Board(2mm, 3mm)
Kraft Paper
Kiss Cut Less Than 1MM Stickers
Adhesive Tape
V-Cut Honeycomb Board etc. Honeycomb Board(9mm, 13mm, 15mm)
4MM Drill Less Than 10MM Acrylic and PVC
6MM Drill Less Than 15MM Acrylic and PVC

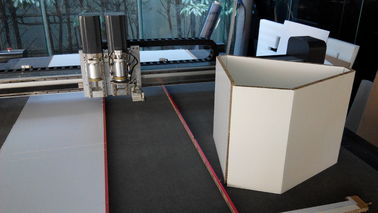

Cutting Samples:

Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools 0Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools 1



Optional

Video registration system

Honeyboard CNC Paper Box Making Machine High Speed With Versatile Tools 2
