| Product Name: | Flatbed Digital Cutter | Material: | Steel |
|---|---|---|---|
| Effective Cutting Area: | 2500*1600mm | Max Aped: | 1000mm/s |
| Smallest Cutting Diameter: | 6mm | Maximum Cutting Thickness: | 60mm |
| High Light: | flatbed cutting machine,digital flatbed cutter,flatbed cutting machine for chipboard |
||

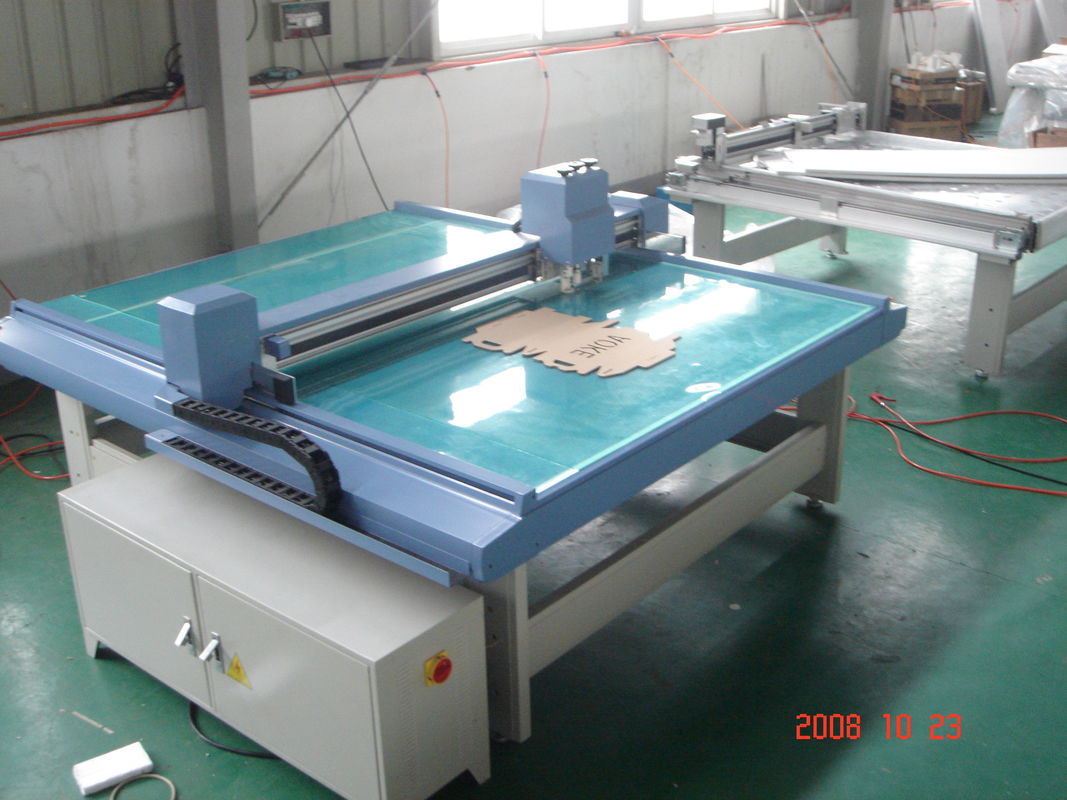

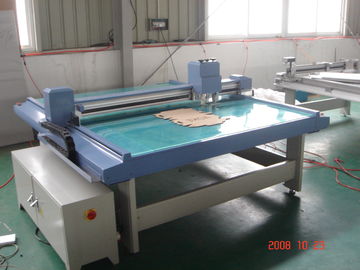

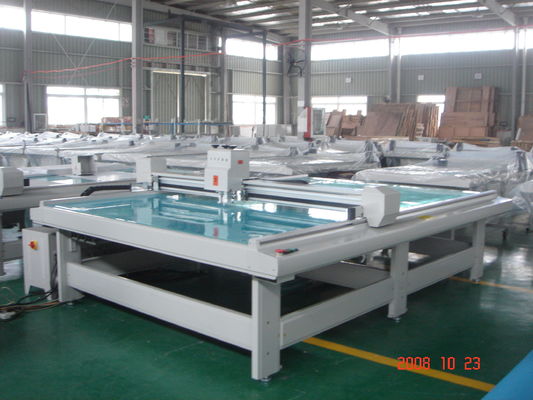

Paper Box cutter flatbed cutting machine for chipboard , foam board , leather , cloth, garment, PVC, Graphetic,
The main features:
1·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.
2·Carton and box can reach to perfect cutting performance
3·Convenient half cut set to achieve perfect half cutting performance
4·Easy operation:Safety guard system is equipped to avoid injury
5·Brunt model sold well in EU and USA market: competitive price and good quality.
Description:
1.DCZ50 series paper box carton sample making machine is AOKE new developed carton sample
making system on DCZ30 series basis.
2.Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50
series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s
stable, high speed, high accuracy.
3.it could meet sample making or small production require of packaging company, corrugated box
manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer.
4.it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc.
5. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,
sign industries.
1.Our Flatbed Digital Cutter should be in a good environment for AOKE cutting machine, it should not
be placed in a strong lit place, to avoid direct sunlight in case of the breakage of countertops and
affect of the machine’s use life.
2. It should be clean the cutting machine countertops with regularly to prevent suction outlet,and to be
blocked (Do not pour the alcohol directly into the countertop).
3. Apply periodical maintenance, optimization and antivirus works on computer system.The unstable
computer system will also affect normal operation of the cutting machine.
4. Do not place weight, scissors, or other objects on the cutting machine, so as not to hit the machine
tool head when starting AOKE cutting machine.
5. It should be avoid to press heavy load down on both sides of the cutting machine table tracks and
beams so as not to damage the track.
6. Avoid the plug and unplug of AOKE cutting machine by the electric cable, Strictly prohibit unplug
online electric cable. Otherwise it will damage the cutting machine or computer
7. To avoid accidents : We shuoldn't to put your hands close to the headWhen AOKE cutting machine
is running.
Specification
| Model | DCZ502516 | DCZ501713 | DCZ501310 |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
| Configuration | Oscillating knife,pen,creasing wheel,drag knife | ||
| Control line and driver | Servo | ||
| Precision | ≤0.1mm | ||
| Vacuum | 5.5kw | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10%50Hz | ||
| Data port | PCI port | ||
| Data Transmission speed | 10MB/s | ||
| Input cushion area | 32MB | ||
| Occupy dimension(L*W*H) | 3165*2545*1250mm | 2365*2245*1250mm | 1960*1935*1250mm |
| Note | Other size can be customized. | ||
