Cardboard Paper Box Cutting Machine / Box Sample Maker Steel Belt Drive

Cardboard Paper Box Cutting Machine / Box Sample Maker Steel Belt Drive

Cardboard Paper Box Cutting Machine / Box Sample Maker  Steel Belt Drive
Cardboard Paper Box Cutting Machine / Box Sample Maker  Steel Belt Drive Cardboard Paper Box Cutting Machine / Box Sample Maker  Steel Belt Drive Cardboard Paper Box Cutting Machine / Box Sample Maker  Steel Belt Drive

Large Image :  Cardboard Paper Box Cutting Machine / Box Sample Maker Steel Belt Drive Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Paper Box Cutting Machine Model: DCH10
Effective Cutting Area: 900*600mm 1200*900mm 1500*1200mm Driver: Step Motor
Driving Material: Import Steel Belt Cut Materials: Red Hard Paper、plastic Board、white Board、kraft Paper、thin PVC
High Light:

flatbed cutting machine

,

paper box cutter

,

belt drive paper box cutting machine

Cardboard and paper box cutting machine , DCH10 Series box sample maker, plot CUT





Introduction

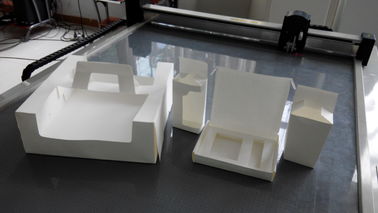

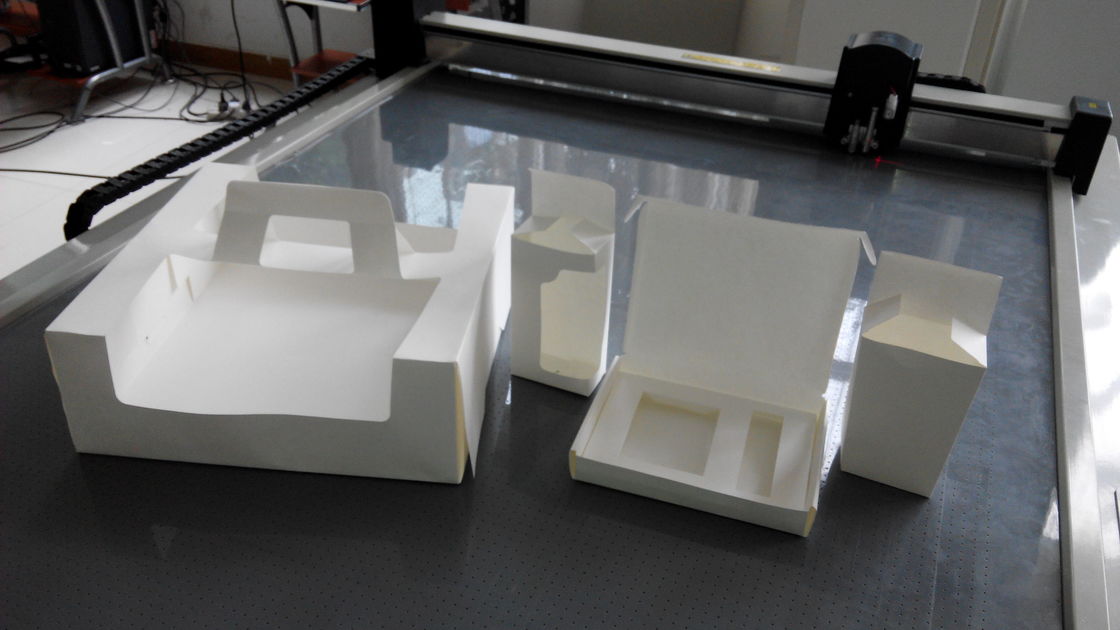

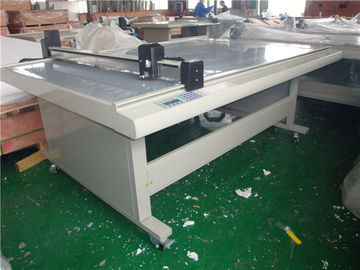

Particularly offered for cutting and making samples for cardboard and plastic box, the DCH10 series paper box cutting machine is applicable for the processing of thin material. Though the application scope is small, the paper box making machine is capable of helping users to save the production cost for sample making, especially for some specific industries. The paper box cutting machine consists of special knife, press roll, and plotting pen for the processing of paperboard and rubber plate Apart from that, the paperboard cutting equipment can be used as the cutting plotter. This product also called box sample maker, PVC box sample maker, sample maker, cutting plotter and so on, according to the different cutting material and application.



Main Features

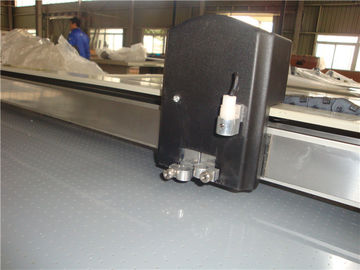

Steel belt drive ensures high accuracy.

Complete tools for manufacturing nice and attractive packaging

Trundle for easy movement of the product



Cutting materials:



card paper, foam, thin PVC, grey board etc.



Application:



Packaging



Specification



Model

DCH100906

DCH101209

DCH101512

Effective cutting area

900*600mm

1200*900mm

1500*1200mm

Driver

Step motor

Configuration

Pen, special knife, creasing tool

Way of fixing paper way

Vacuum absorbing

Driving material

Import steel belt

Cut materials

Red hard paper,plastic board,white board,kraft paper,thin PVC

Cutting way

Drawing by pen,half cutting,whole cutting

Cutting thickness

0.5-2mm

Cutting precision

≤0.1mm

Max speed

1000mm/s

Working time and character

Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.

Transmitting port

International standards: parallel port/RSC232 serial port

Capacity of buffer area

Buffer area of large capacity, it can finish high-speed transmission for data at a time

Instruction set

International standards: HP-GL or DXF format can be selected,

Numerical control board

LTD, all-English operating menu

Voltage

AC 220V±10% 50Hz

Fuse standard

5A

Occupy dimension(L*W*H)

1335*1065*1080mm

1635*1365*1080mm

1935*1665*1080mm

Note

Other size can be customized.



Optional



Video Registration System
