Product Details:
Payment & Shipping Terms:
|
| Product Name: | Flatbed Digital Cutter | Model: | DCZ50 |
|---|---|---|---|
| Effective Cutting Area: | 1300*1000mm | Input Cushion Area: | 30MB |
| Data Transmission Speed: | 10MB/s | Maximum Cutting Thickness: | 60mm |
| High Light: | flatbed cutting machine,digital flatbed cutter,computerized flatbed digital cutter |
||

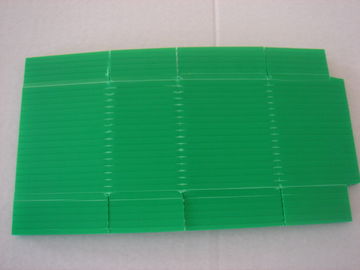

Computerized flatbed digital cutter ,PP Sheets box, paper box cutting machine
Description:
DCZ50 series paper box carton sample making machine is AOKE new developed carton sample
making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a
lot comparing with original one. DCZ50 series sample making machine make cutting, creasing,
drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet
sample making or small production require of packaging company, corrugated box manufacturer,
color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated
board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.
The main character of DCZ50 is as following:

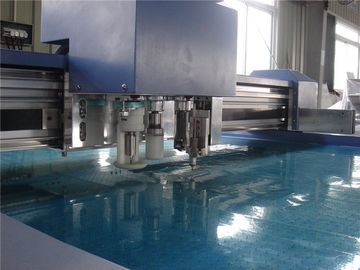

·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.
·Carton and box can reach to perfect cutting performance
·Convenient half cut set to achieve perfect half cutting performance
·Safety guard system is equipped to avoid injury
·Brunt model sold well in EU and USA market
Specification
| Model | DCZ502516 | DCZ501713 | DCZ501310 |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
| Configuration | Oscillating knife,pen,creasing wheel,drag knife | ||
| Max aped | 1000mm/s | ||
| Smallest cutting diameter | 6mm | ||
| Maximum cutting thickness | 15mm | ||
| Control line and driver | Servo | ||
| Precision | ≤0.1mm | ||
| Vacuum | 5.5kw | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10%50Hz | ||
| Data port | PCI port | ||
| Occupy dimension(L*W*H) | 3165*2545*1250mm | 2365*2245*1250mm | 1960*1935*1250mm |
| Note | Other size can be customized. | ||
1. Choose a good environment for AOKE cutting machine, it should not be placed in a strong lit place,
to avoid direct sunlight in case of the breakage of countertops and affect of the machine’s use life.
2. Clean the cutting machine countertops regularly to prevent suction outlet to be blocked (Do not pour
the alcohol directly into the countertop).
3. Apply periodical maintenance, optimization and antivirus works on computer system.The unstable
computer system will also affect normal operation of the cutting machine.
4. Do not place weight, scissors, or other objects on the cutting machine, so as not to hit the machine
tool head when starting AOKE cutting machine.
5. Do not press heavy load down on both sides of the cutting machine table tracks and beams so as
not to damage the track.
6. Avoid the plug and unplug of AOKE cutting machine by the electric cable, Strictly prohibit unplug
online electric cable. Otherwise it will damage the cutting machine or computer
7. When AOKE cutting machine is running, do not put your hands close to the head to avoid accidents.
