Oscillating knife cut 15mm corrugated papers, white board, EVA, cardboard, fast speed, stable quality, long working life
Productivity The new DCZ 7 Series machines provide fast and flexible solutions to prototyping and short run production requirements. Automating your finishing department increases productivity and reduces bottlenecks, this is clear to see. With the ability to prototype, the DCZ 7 Series machine also allows your design team to be more creative.
Flexibility The high speed, high accuracy digital servo drives provide smooth and reliable operation Versatile tooling options ensure that you have the ability to finish a vast range of materials quickly and easily. Adding extra tooling, such as the powerful 1KW router, extends the range of materials that can be cut far beyond those that a single point knife cutting system can handle. Because tables come in an extensive range of sizes you can be confident of finding a solution that fits your requirements perfectly.

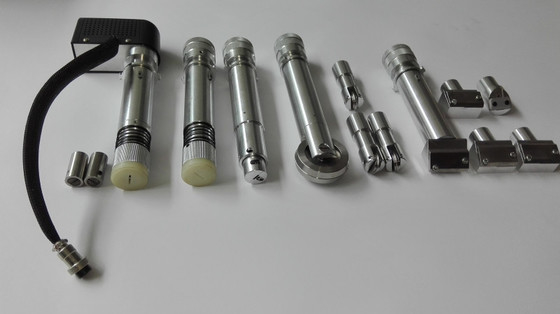

Tooling The DCZ 7 Series tool head comprises 2 interchangeable, tangentially driven tool modules and a Pen, incorporating the following, standard set of tools.
Electronic Oscillating Knife – with variable oscillating control, max 12,000rpm. Suitable for cutting a variety of materials, up to 15mm in thickness.
Drag Knife – With a selection of blade types and angles to suit most materials Creasing Tool – with interchangeable creasing profiles. Suitable for creasing a variety of both fluted and non-fluted packaging materials.
Pen Tool – Suitable for drawing on a variety of materials
Optional Router – with variable spindle control, speed max 50,000rpm Suitable for harder materials e.g. Acrylic, Plexiglas, wood and thin Aluminium. This tool is not part of the standard configuration but can be retrofitted if required.
Camera Registration The video camera registration module fitted to the DCZ 7 Series gives you perfect cut to print registration every time. It minimizes the setup time on the machine, increases productivity and virtually eliminates errors and subsequent wastage. The module comprises a color video camera plus dedicated software which utilizes any style of registration mark.
How to place an order:
1. After confirming order details, we will make Proforma Invoice for you.
2. After receiving 30% deposite will start test machine carefully. Ensure the excellent performance.
3. After tested the machine, will pack and send out.
4. When you received the printer, there is user manual and video to guide you install,operate and maintain.
5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.
6. We provide free training in our factory. When order several sets, can also send technician to your place. Help set up machine, and provide training to your staffs.
Look forward to cooperate with you, be successful with us!
Specification:
Model
DCZ762516
DCZ761713
DCZ761310
Effective cutting area
2500*1600mm
1700*1300mm
1300*1000mm
Configuration
Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool
