Amin: | 80MM | Amax: | 600mm |
---|---|---|---|
Bmin: | 120mm | Bmax: | 900mm |
Paper Thickness: | 10-400g/㎡ | Cardboard Thickness: | 0.8-3mm |
Wmin: | 65mm | Wmax: | 400mm |
Lmin: | 65mm | Lmax: | 450mm |
Hmin: | 15mm | Hmax: | 120mm |
Production Speed: | 25-33sheets/min | Power: | 27.8KW |
Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | TABLE: | Flatbed, Conveybelt, |
TABLE: | Flatbed, Conveybelt, | TABLE: | Flatbed, Conveybelt, |
High Light: | Rigid Jewelry Box Making Machine,Mobilephone Rigid Box Making Machine,33 Sheets/Min Rigid Box Machine |

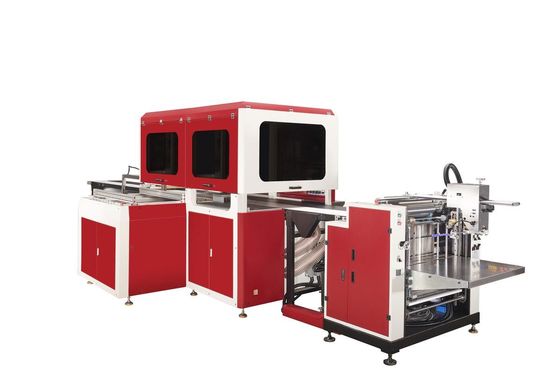

DH-4045SS High Speed Automatic Rigid Box Machine is one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as mobile phone, gift boxes, cosmetic boxes, watch boxes,slanting boxes,slip case (option),etc.size range is bigger than 350GS,more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful.
DH4045SS adopts PLC and man-machine control, camera tracing system,and can automatically feed cover paper,feed greyboard,tape four corners,spot greyboard,lift box,wrap box,fold corner edges,and form box.
The feeder,the gluer and the conveyor are driven by well known servos which have continuously variable transmission,and enjors high accuiacy,easy adjusting,and less time consumption.the spot unit adopts camera with 10 Million pixel and spotting accuracy to ±0.01mm.The forming unit employs linear and virtual cam driving system,guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and cirner edges.
Features and function:
1. Suitable for all kinds of automatic production lines of cardboard world cover
2. Set the function parameters of the whole computer
3. Fault diagnosis function
4. Automatic feeding function of tissue paper and ash feeding board
5.24 hours control glue preheating function
6. 300 product formulations are built into the molding machine
7. Separate human-machine interface control for four-corner heating
8. The whole machine adopts servo control system
9. Image positioning system and robot grasping and positioning (error ±0.01mm)
10. Automatic carton lifting and drawing device
11. Automatic glue viscosity control system (optional)
12. It can be modified to use the ash palletizing machine (optional)
13. Short side ears can be matched or butt left and right, more suitable for high-grade carton production
14. The innovative new gluing method can be used for both white glue and hot melt glue
15. Can produce face paper slotting products, and complete the edge folding ear at one time.
Technical Parameters
Production Process
Paper size(A B) | Amin | 80mm |
Amax | 600mm | |
Bmin | 120mm | |
Bmax | 900mm | |
Paper thickness | 100-400g/㎡ | |
Cardboard thickness | 0.8-3mm | |
Finished product (carton) size(W*L*H) Highest and widest cannot be used at the same time |
Wmin | 65mm |
Wmax | 400mm | |
Lmin | 65mm | |
Lmax | 450mm | |
Hmin | 15mm | |
Hmax | 120mm | |
Leather Case (lined) size | Pmin | 800mm*100mm |
Pmax | 850mm*500mm | |
Leather Case (lined) size | Rmin | 10mm |
Rmax | 90mm | |
Position accuracy | ±0.10mm | |
Production speed | 25-33 sheets/min | |
Total power | 27.8KW/380V 3phase | |
Electric power | 5.1kw | |
weight | 5800kg | |
Machine size (L*W*H) | L8300*W5500*H3400 |
The product is being upgraded at any time, the appearance is subject to the current machin
