Product Details:
Payment & Shipping Terms:
|
| WORKING SIZE: | 350MM-2500MM | Power: | 15KW |
|---|---|---|---|
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| TABLE: | Flatbed, Conveybelt, | TABLE: | Flatbed, Conveybelt, |
| High Light: | Corrugated Box Creasing Die Cutting Machine,Paper Creasing And Die Cutting Machine,Gift Box Creasing And Cutting Machine |
||
Usage:

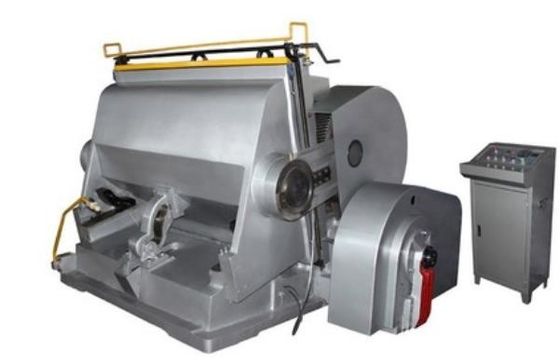

Creasing and Die Cutting Machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. It's very applicable to printing packaging decoration and plastic industries. The machine has compact structure, in workmanship, big pressure, high precision and easy and reliable operation etc.
Main Specification :
High strength due to one piece casting by using top quality material for the machine body.
Smooth running, big pressure and low noise are obviously remarked as lnter gear input and helical gear output mechanism is adopted.
Single plate electromagnetic clutch is sensitive and reliable.
Operational altitude is reasonably arranged, movable platen opens to its optimum.
The electrical system is designed in conformity with IEC standard.
With functions as single, continuous operation and opening dwell. And the dwell time is adjustable.
The safety system is reliable.
With concentrated lubricating system
| Model | Inner Chase Size |
Speed |
Max.Rule Length |
Motor Power |
Machine Weight |
Overall Dimensions |
| ML2000 | 2000×1400mm | 12±2 | 65m | 15kw | 15500kg |
3000*2300*2350mm
|
1. PAYMENT:30%TT in advance,70%TT before shipment
2. PACKING: Wooden carton
3. TIME OF SHIPMENT: Within 30 days upon your payment
