Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft

I'm Online Chat Now

Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft

China Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft supplier
Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft supplier Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft supplier Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft supplier Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft supplier

Large Image :  Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: H6

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Mobile Box Making Machine Min Size: L75*W75*H10mm
Working Speed: 10-25 Per Min Technology: Janpan
Appilication: Mobile Phone Box, Shoes Box, Cosmetics Box, Gift Box And Chocolate Box MAX SIZE: L460*W360*H120 Mm

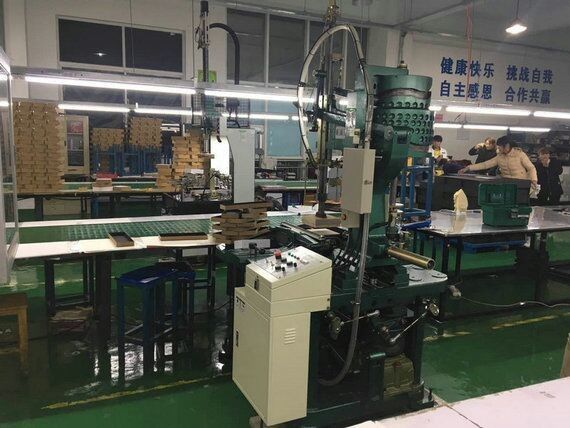

Multifunction Rigid Box Making Machine Gift box four sides making machine, Rigid Gift Box production line



Automatic box wrapping machine is accessory equipment for making rigid box,gift boxes,packaging boxes,with advantages of small size,easy operation,fast speed cycle.this machine can automatically start to edge fold and forming and wrap of box.The advance PLC and variable frequency can freely control its speed and it equipment with safety device to ensure fast and safe production.uses the electric brushes to make the output rigid boxes more tightly and smoothly.



The main shaft and mold stretch are all driven by servo motors and guarantee a quiet and stable operation circumstance and smooth mechanical process



The motion of main shaft adopts the structure of skew rack, so it’s very stable, accurate, strong, high efficiency, long life



Folding corner edge is up to 100mm as standard, and this is controlled by rails and cylinder, which is adjustable and precision.



Controlled by PLC, which formulas memory, it costs only 15 minutes to change the other box plate.

Optical grating transducer protects the operator from operation injury.



Table board and frame are processed by CNC by one time and enjoy durable quality

1.Intelligent adjustment, it can change mould within 30minutes which is very fast; Suitable for making different kind of boxes in one day;

2. Adopts high precision ceramic glue roller with heating function, using less glue but coating evenly, and solve the winter animal glue problem such as poor liquidity, wire drawing, not sticky;

3. Accurate positioning: +/-0.2mm tolerance;

4. Time of the pressure on the boxes can be set freely, each nose can be lowered or raised, can rotate at any angle, the products without bubbles, slack side and scratched;

5. One minute can adjust the pre-production box size with intelligent memory function and can produce within 15 minutes;

6. It's used to make high quality electronic products packaging, cosmetic box, wine box, shoe box, apparel box etc

7. High output, it can make ≤30pcs boxes per minute with supreme quality.

8. It can make some typical boxes, folding deeper boxes, such as rugged boxes, trapezoidal boxes, with window boxes.

9. Fool boot model, greatly reduces the starting difficulty, flexible and convenient





Multifunction Stable Rigid Box Making Machine Skew Rack Structure Main ShaftMultifunction Stable Rigid Box Making Machine Skew Rack Structure Main ShaftMultifunction Stable Rigid Box Making Machine Skew Rack Structure Main ShaftMultifunction Stable Rigid Box Making Machine Skew Rack Structure Main Shaft



This machine is designed for packaging boxes,such as jewellery box, gift box, mobile box, tea box, moon cake box, bottom and cover box to press the bubble of the finished rigid boxes.



Performance:

1,The machine is completed by a servo motor, PLC programmable control.

2,The machine commissioning completed by the HMI selective, simple and easy to adjust.

3,The machine control accessories for all full use of international high-end brands, the failure of low and high accuracy.

4,The machine with a fault alarm functions, such as and part of the failure, the alarm will whistle, fault will be displayed on the screen.

5,The machine can touch with emergency stop switch, if an emergency press stops automatically.

Service:
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.







Technical Parameters:

Max size L460*W360*H120 mm Power 220V 2.1KW
Min size L75*W75*H10mm Weight

600KG



Speed 10-25pcs/min Dimension

L1050*W900*H2600mm
