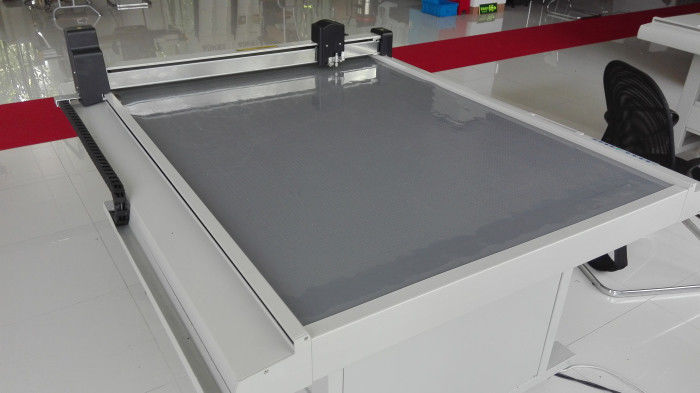

Little Black Edge Digital Flatbed Cutter Full Elimination Dazzling Light

Little Black Edge Digital Flatbed Cutter Full Elimination Dazzling Light

Little Black Edge Digital Flatbed Cutter Full Elimination Dazzling Light
Little Black Edge Digital Flatbed Cutter Full Elimination Dazzling Light

Large Image :  Little Black Edge Digital Flatbed Cutter Full Elimination Dazzling Light Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Advertising Sheet Digital Cutter Machine Model: DCG703520
Effective Cutting Area: 3500mm*2000mm Cutting Accuracy: 0.26mm
Smallest Cutting Diameter: 1.6mm Maximum Cutting Thickness: 1.7mm
High Light:

electronic die cutter

,

desktop die cutting machine

DCG70/DCG71 series pressure control electronic die cutting machine adhesive cut foil cut  photo-electric materials

Introduction

The DCG70/DCG71 series pressure control electronic die cutting machine offers sample making solutions for the electronic industry In addition to the function of the product of DCG50/DCG51 series, the pressure control electronic die cutter is engineered with pressure control tool head and laser positioning system, to realize accurate control and positioning. Apart from optimal cutting effect, our pressure control electronic die cutting machine also improves the cutting quality. Thanks to the pressure control technology, influence on the cutting quality caused by worktable smoothness can be fully eliminated through pressure setting. So, perfect through and half cutting effect can be obtained Applicable for printing circuit board and electronic material, DCG70 series adopts vacuum pump to hold the material, while the DCG71 electronic die cutting machinery by electrostatic board. This product also called electronic die cutting machine, die plotter, adhesive cutting machine, film cutting machine and so on, according to the different cutting material and application.

Main Features

1. Comparison with die cutting machine

Saving cost for mould making and knife sharpening; Convenient adjustment

2. Comparison with laser cutting machine

Little black edge, Little scorch for thin material; Full elimination of dazzling light, Low production cost

3. Special functions of pressure control electronic die cutting machine

Capable of completing through and half cutting atone stroke; Cutting accuracy up to 0.05mm, Plotting is available, Capable of completing creasing and cutting in one time if equipped with creasing tool; Accurate positioning for cutting various kinds of electronic materials; The cutting knife is controlled by pressure for perfect half-cutting effect.

Cutting materials:

3M double-side adhesive, photo-electric materials (shading, diffuse, reflect), insulating material film switch.

Application:

Electronic die, laser die etc.

1. Easy to use

  • AOKE tables are easy to install and simple to set-up and use. The table is programmed for use with AOKECUT software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
  • 2. Saves time and money whilst improving quality

  • Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
  • Greatly reduces the time taken to hand cut sample and graded paper patterns.
  • Consistent accuracy throughout, utilizing the AOKECUT CAD software, any modifications to the pattern can be re-cut quickly and efficiently.
  • Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.

Specification:

Model DCG701209 DCG700906 DCG710906 DCG711209
Effective cutting area 1200*900mm 900*600mm 1200*900mm
Configuration Pen, pressure control knife, laser position
Way of fixing paper way Vacuum absorbing Electrostatic
Max speed 1000mm/s
Cutting thickness <1mm
Cutting precision <0.01mm
Voltage 220V 50HZ
Transmitting port parallel port/RSC232 serial port
Instruction set HPGL DXF
Occupy dimension(L*W*H) 1635*1365*1080mm 1335*1065*1080mm 1635*1365*1080mm
Note Other size can be customized.



Samples

Little Black Edge Digital Flatbed Cutter Full Elimination Dazzling Light 0

Optional

Video registration system
