Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt

Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt

Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt
Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt

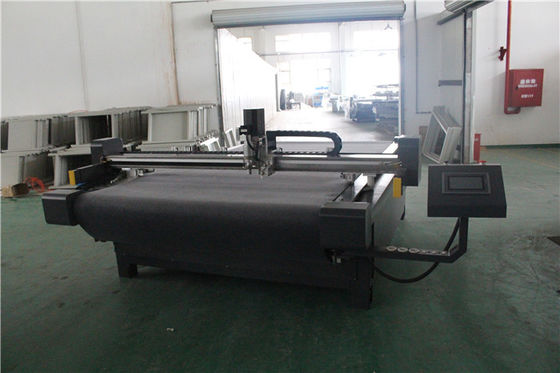

Large Image :  Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: MAXWELL
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 3000USD
Packaging Details: WOODEN BOX
Delivery Time: WITHIN ONE MONTH
Payment Terms: TT
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Arylic Sheet Cutting Machine Model: DCZ733016RS
Effective Cutting Area: 3000mm*1600mm Max Aped: 1380mm/s
Smallest Cutting Diameter: 5mm Maximum Cutting Thickness: 45mm
High Light:

high speed digital flatbed cutter

,

cardboard box cutting machine

,

CE flatbed digital cutting machine

Flatbed digital cutter cutting machine Flatbed digigl cutter oscillating knife creasing Router Spindle covey beltInduction:

Our DCZ77 series high speed digital flatbed cutter is equipped with a particular router and convey belt system, and other tools including the oscillating knife, creasing Wheel, drag knife, V cut knife and pen can be customized according to customer’s require. It can cut various kinds soft materials, such as corrugated paper, honeycomb board, paperboard, foam, grey board, KT board, PVC expansion sheet etc. Materials used in advertisement industry, like plastic, acrylic, PS board and PVC can also be cut by our digital flatbed cutting machine. It can also realize the continuous cutting of the roll and flat material by equipping the convey belt. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.

Main features:

Three independent module, cover all major materials

Exchangeable tools, better expansion

High speed imported spindle, smoother in the cutting edge

New vacuum area design, stronger suction

High efficient material transport system

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet, PS board, acrylic, plastic board etc.

Application:

Ads, Display, Packaging, Graphic.

Specification:

Model DCZ772516 DCZ7717137 DCZ771310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000
Configuration Oscillating knife,pen,creasing tool,drag knife, foam knife, v cut knife, router system, convey belt
Router Speed 50000RPM or 25000RPM
Max aped 1400mm/s
Driver Servo
Precision ≤0.1mm
Maximum cutting thickness 60mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3460*1400mm 2700*3160*1400mm 2300*2830*1400mm
Note Other size can be customized



utting Samples:

Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt 0Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt 1Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt 2Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt 3Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt 4Oscillating Knife Foam Cutting Machine Creasing Router Spindle Covey Belt 5

Optional

Video registration system, feeding and blanking system
