Digital Pattern CNC Gasket Cutting Machine Compatible CAD With LCD Touch Screen

I'm Online Chat Now

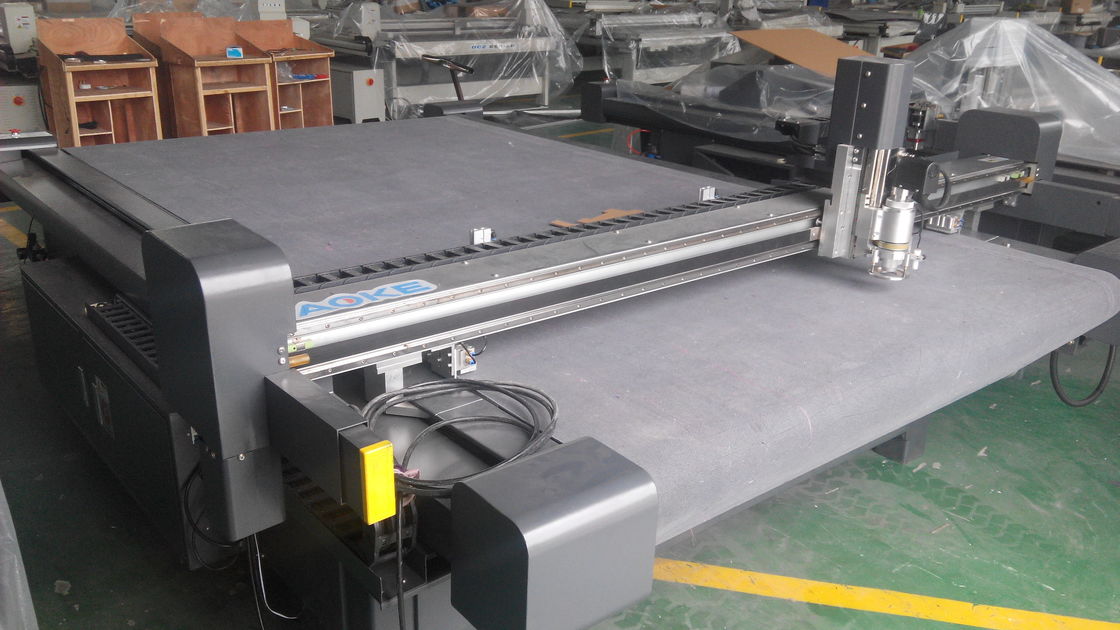

Digital Pattern CNC Gasket Cutting Machine Compatible CAD With LCD Touch Screen

China Digital Pattern CNC Gasket Cutting Machine Compatible CAD With LCD Touch Screen supplier
Digital Pattern CNC Gasket Cutting Machine Compatible CAD With LCD Touch Screen supplier Digital Pattern CNC Gasket Cutting Machine Compatible CAD With LCD Touch Screen supplier

Large Image :  Digital Pattern CNC Gasket Cutting Machine Compatible CAD With LCD Touch Screen

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCF70X

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Single Module CNC Gasket Cutting Machine With Oscillating Knife Model: DCF70X 2516-232
Effective Cutting Area: 2500*1600mm 1700*1300mm 1300*1000mm Max Aped: 1400mm/s
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm

CNC Gasket Cutting machine Single Module cutting system oscillating knifeCar mats, foam compound, XPE, EVA, fabric carpet



Introduction:



DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.



Cutting materials:

Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.

Application:

Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.



Features:

The application of an English port makes Digital Pattern Cutting Solution fast and convenient.

High performance is guaranteed with the integrated circuit plate.

The linear guide of Digital Pattern Cutting Solution ensures high speed and few errors.

Digital Pattern Cutting Solution feature imported digital servo drivers and their SD cards offer mass storage.

The powerful compatible function enables connection with any kind of CAD software.

Digital Pattern Cutting Solution have an LCD touch screen in both English and Chinese.

Digital Pattern Cutting Solution feature intellective order printing.

Main Features

The felt convey belt of our product is imported and the material transportation system is of high efficiency.

Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.

New steel structure, suit for production use.



Specification

Model DCF732516R DCF731713R DCF731310R
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,convey system
Max aped 1400mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 30mm
Control line and driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3200*1400mm 2650*2900*1400mm 2200*2570*1400mm
Note Other size can be customized.
Blade Thickness Material
16 Degrees Blade Less Than 15MM Double Wall Corrugated Paper
Triple Wall Corrugated Paper
Honeycomb Board
26 Degrees Blade Less Than 10MM E Wall Corrugated Paper
B Wall Corrugated Paper
Double Wall Corrugated Paper
White Cardboard
Kraft Paper
E Wall Corrugated Paper
B Wall Corrugated Paper
Double Wall Corrugated Paper
39 Degrees Blade Less Than 3MM White Cardboard
Grey Board(2mm, 3mm)
Kraft Paper
Kiss Cut Less Than 1MM Stickers
Adhesive Tape
V-Cut Honeycomb Board etc. Honeycomb Board(9mm, 13mm, 15mm)
4MM Drill Less Than 10MM Acrylic and PVC
6MM Drill Less Than 15MM Acrylic and PVC

Optional

Video registration system, feeding and blanking system.
