Flatbed Digital Carton Box Cutting Machine Smart Digital Canvas Cutter

I'm Online Chat Now

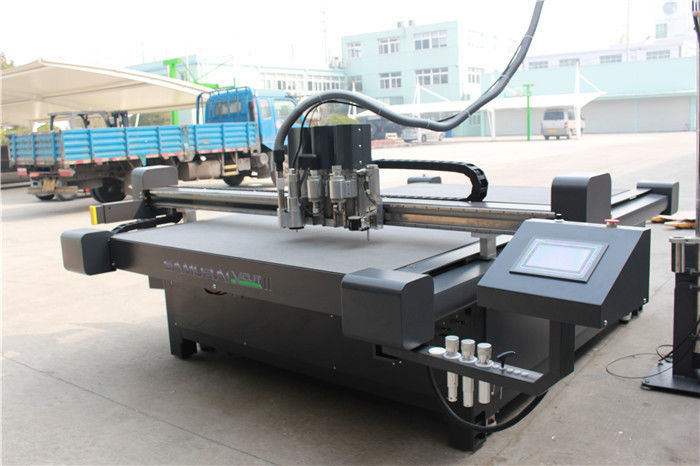

Flatbed Digital Carton Box Cutting Machine Smart Digital Canvas Cutter

China Flatbed Digital Carton Box Cutting Machine Smart Digital Canvas Cutter supplier

Large Image :  Flatbed Digital Carton Box Cutting Machine Smart Digital Canvas Cutter

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCZ7XRS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Box Cutting Machine Model: DCZ7XRS-12
Motor: Servo Vacuum Pump: 5500W
Smallest Cutting Diameter: 6mm Maximum Cutting Thickness: 60mm

flatbed digital cutter canvas, KT board, PVC expansion sheet, PS board, acrylic carton box



Our DCZ7XRS series high speed digital flatbed cutter is equipped with a particular router and convey belt system, and other tools including the oscillating knife, creasing Wheel, drag knife, V cut knife and pen can be customized according to customer’s require. It can cut various kinds soft materials, such as corrugated paper, honeycomb board, paperboard, foam, grey board, KT board, PVC expansion sheet etc. Materials used in advertisement industry, like plastic, acrylic, PS board and PVC can also be cut by our digital flatbed cutting machine. It can also realize the continuous cutting of the roll and flat material by equipping the convey belt. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.



1.Fast, accurate and no burning. It cuts at a speed of 1500mm/s(max.) by knife, not laser.

2.Safe. Special safety sensory device meets the European standard.
3.Professional. Oscillating knife, V-cutter, milling knife, creasing wheel and marking pen are available and optional. The profession machine can meet almost any requirement in package industry. 4.Saving. Labor saving, material saving and power saving.

5.Compatitable. Support any design software which can output files in DXF or PLT formats.

(Such as AutoCAD, AI, CorelDraw)



Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet, PS board, acrylic, plastic board etc

.

Application:

Ads, Display, Packaging, Graphi



Main features:



1.Three independent module, cover all major materials


2.New vacuum area design, stronger suction


3.Exchangeable tools, better expansion



4.High speed imported spindle, smoother in the cutting edge



c.

Specification:

Model DCZ762516RS DCZ761713RS DCZ761310RS
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000
Configuration Oscillating knife,pen,creasing tool,drag knife, foam knife, v cut knife, router system, convey belt
Router Speed 50000RPM or 25000RPM
Max aped 1400mm/s
Driver Servo
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3460*1400mm 2700*3160*1400mm 2300*2830*1400mm
Note Other size can be customized





Optional

Video registration system, feeding and blanking system
