Easy Install PP Box Making Machine Effective Cutting Area 1700*1300mm

I'm Online Chat Now

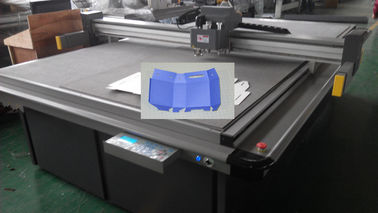

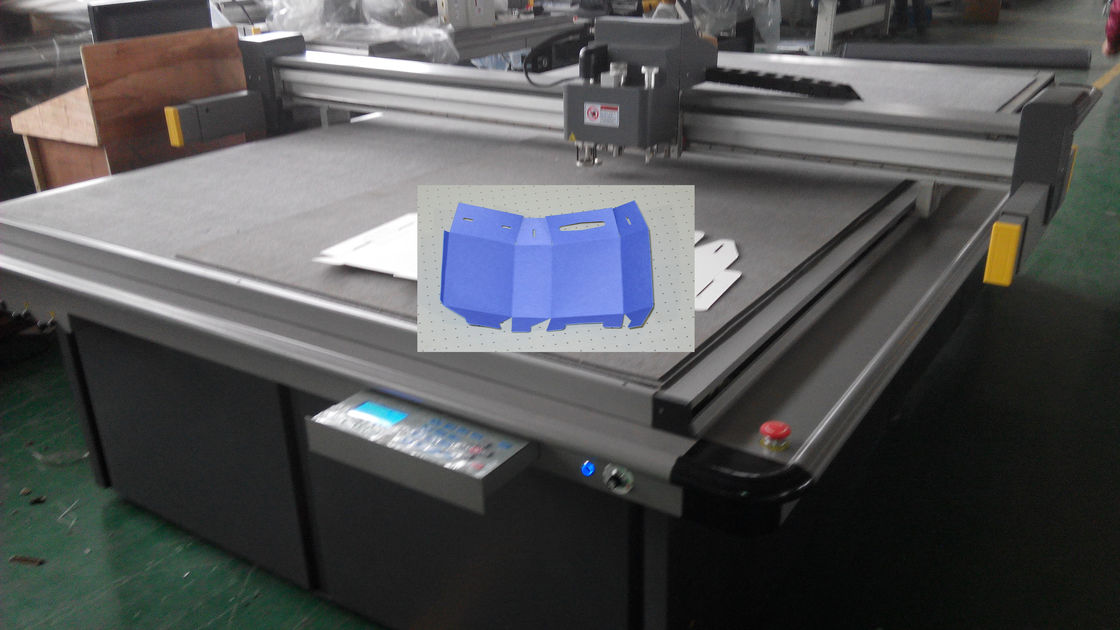

Easy Install PP Box Making Machine Effective Cutting Area 1700*1300mm

China Easy Install PP Box Making Machine Effective Cutting Area 1700*1300mm supplier

Large Image :  Easy Install PP Box Making Machine Effective Cutting Area 1700*1300mm

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: DCZ70

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: Box Cutting Machine Model: DCZ701713
Effective Cutting Area: 1700*1300mm Max Aped: 13.5cm/s
Motor: Servo Maximum Cutting Thickness: 30mm

Flatbed UV digital printing machines, oscillating knife, creasing wheel, pen for Corrugated paper , honeycomb board



Introduction:

WHAT ARE THE BENEFITS?



1. Easy to use

  • AOKE tables are easy to install and simple to set-up and use. The table is programmed for use with AOKECUT software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.

2. Saves time and money whilst improving quality

  • Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
  • Greatly reduces the time taken to hand cut sample and graded paper patterns.
  • Consistent accuracy throughout, utilizing the AOKECUT CAD software, any modifications to the pattern can be re-cut quickly and efficiently.
  • Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet etc.

Application:

Packaging, Graphic.

Specification:

Model DCZ702516 DCZ701713 DCZ701310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife,pen,creasing tool,drag knife
Precision ≤0.1mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, V cut knife, foam knife
Occupy dimension(L*W*H) 3400*2460*1180mm 2600*2160*1180mm 2200*1860*1180mm
Note Other size can be customized.





Cutting Samples

Easy Install PP Box Making Machine Effective Cutting Area 1700*1300mm
