Rigid Board Automatic Die Cutting Machine Self Locking Gap Adjustment Device

China Rigid Board Automatic Die Cutting Machine Self Locking Gap Adjustment Device supplier

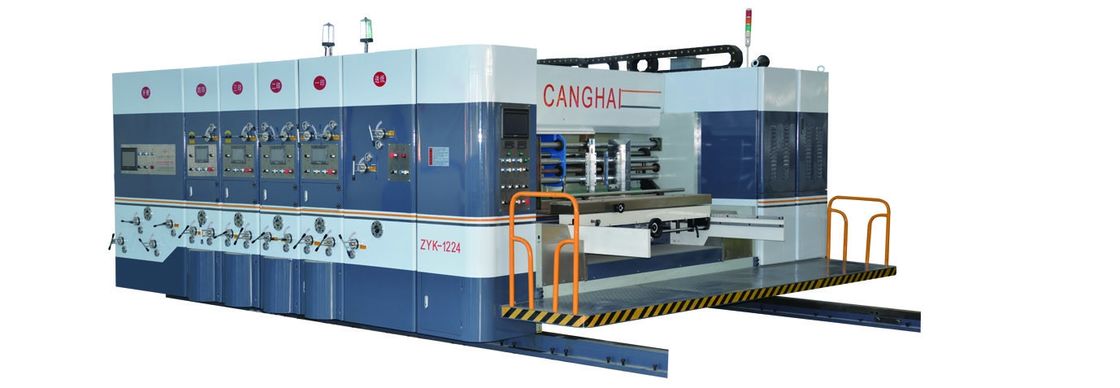

Large Image :  Rigid Board Automatic Die Cutting Machine Self Locking Gap Adjustment Device

Product Details:

Place of Origin: SHANGHAI
Brand Name: MAXWELL
Certification: CE
Model Number: ZYK1224

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3000USD
Packaging Details: Wooden box
Delivery Time: within 20 days
Payment Terms: TT/WEST UNION/PAYPLA
Supply Ability: 200units/month
Contact Now
Detailed Product Description
Product Name: DIE CUT Model: ZYK1224
Effective Cutting Area: 1200mm*2400mm Cut Materials: Regid Board、paper Sheet、plastic Sheet
Printing Plate Thickness: 7.2 Max.Depth Of Slotting: 250

Automatic High-speed water-based Printing Slotting Die-cutting Machine



Modle 1020 1224 1428 1630
Max.machine speed(pcs/m) 220 180 160 140
Max.feeding size 1000×2200 1270×2600 1500×3000 1660×3200
Skip.feeding size 1250×2200 1500×2600 1800×3000 2000×3200
Max.printing area 950×2000 1200×2400 1430×2800 1600×3000
Min.feeding size 260×650 320×750 350×750 400×750
Max.Depth of slotting 250 320 390 430
Registration precision

≤±0.35

(four colour)

≤±0.4four colour)

≤±0.5

(four colour)

Printing plate thickness 7.2
(mm) Max.printing area 2.5-9 2.5—12
Min.slotting interval Normal 150×150×150×150
Reverse 250×50×250×50 250×110×250×110

MACHINE FEATURES

◆ This machine is designed and produced based on high quality,high speed,high efficiency,reliability and safety,with the advantages of quick changing order and easy operation.

◆ Adapting imported PLC with touch screen control.It can save order,and accelerate the changing order speed.

◆ Adopt high quality material and assembly part.

◆ All cylinders and rollers are chrome plated for ideal hardness.

◆ Transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.

◆ Use expansion sets tight link to reduce abrasion of the shaft,keep high presition of the machine in long year.

◆ Adopt hanging struture,auto reset,quick changing order.

◆ Each unit is equipped with Emergency Stop switch to ensure safety operation.

◆ Using Self Locking gap adjustment device for ease operation.

◆ Electric element,bearing,and pneumatic element all use international famous brand.



STACKER

Rigid Board Automatic Die Cutting Machine Self Locking Gap Adjustment Device

◆ Auto or manual for stacker system control.

◆ The driving belt of connection arm can adjust the elasticity alone and can choose the number of connection arm as will.

◆ Platform elevator is drive by strong thread.

◆ Height up to 1600mm.

◆ Platform elevator with brake control deviceto keep stable in fixed position and antislipping.

◆ Pneumatic paper bearing board assist the circle receiving device.

◆ Manual adjustment the position of back block.

◆ The plane wrinkle leather belt which prevent the cardboard glides down.
