Home ProductsPhoto Frame Making Machine

Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter

Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter

Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter
Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter

Large Image :  Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter Get Best Price

Product Details:
Place of Origin: SHANGHAI CHINA
Brand Name: MAXWELL CUT
Certification: CE
Model Number: MEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: up to the sizes
Packaging Details: wooden boxes
Delivery Time: within one month after we get the order
Payment Terms: TT, WU, Paypal
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Picture Frame Die Cutter Model: DCX30
Effective Cutting Area: 1700*1300mm Warranty: 1year
Smallest Cutting Diameter: 2.2mm Maximum Cutting Thickness: 2.8mm
Cutting Materials: Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, Cutting Materials: Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft,
Cutting Thickness: Less Than 100mm Size: 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised
Tools: Oscillating Knife, Creasing Wheel, Pen, Laser Light, Tools: Oscillating Knife, Creasing Wheel, Pen, Laser Light,
Tools: Pneumatic Tool, Vcut, Kiss Cut, CCD TABLE: Flatbed, Conveybelt,
TABLE: Flatbed, Conveybelt, TABLE: Flatbed, Conveybelt,
High Light:

photo frame cutter machine

,

picture frame cutting machine

DCX30 series Photo frame picture frame cutting machine cardboard cut



Introduction:


DCX30 “SEVEN BRIGHT SPOTS”
Profit expert: AOKE DCX30 photo frame cutting machine is the most advanced and useful machine, which is well used for gallery, cross stitch shop and frame factory, etc.
Speed master: bring in foreign advanced control card to realize high cutting speed
Accuracy expert: imported linear guides and accurate cutting
Figure master: diversified cutting with intellectual head. e.g: to cut profile hole, V-groove and outer frame with flower types
Stability expert: have gotten good reputation from domestic and overseas since the first AOKE frame cutting machine in the year of 2003. And steady with the properties.
Usage expert: powerful AOKECUT software, friendly operation of the software, convenient to use; to finish changing blade within several seconds. 30 degree angle table make it easy to operate.
Saver master: initiate the first frame cutting machine in China, With self-owned intellectual property rights. The performance up to the international advanced level, but the price is very reasonable and the cost for maintenance and usage are very low. what are you waiting for? go ahead to buy one!

Cutting materials:

Card paper,

Application:

Photo frame, cross stitch, gallery



GUARANTEE & AFTER SALE SERVICE

1.One year guarantee for whole machine except consumables such as knife blade, mat.

2.You are welcome to our company to have a professional trainning and observation.

3.Calling or door-to-door service.

4.24 hour online and hot line services.

  1. Use friendly-English software, usual manual and detailed videos.

ABOUT US



1.20 years of experience in CNC cutting technology;

2.The first and biggest CNC cutting machine manufacturer in China;

3.We focus on the research and development of CNC knife-cutting technology and related CAD software over the past 20 years;

4.The quality and service are regarded as the life of our corporation;

5.We will never be satisfied until you are satisfied;

6.Our engineering team never stop to improve our machine and upgrade our software;

7.AOKE is based in Shanghai, aiming at the global market.

Specification:

Model DCX301208 DCX301610 DCX302412
effective cutting area 1200*880mm 1600*1000mm 2400*1200mm
Max acceleration speed 4500mm/s2
Max speed 600mm/s
Precision ≤0.05mm
Max cutting thickness 3mm
cutting angle 45/55
Occupy dimension(L*W*H) 1810*1330*1430mm 2210*1530*1430mm 3010*1730*1430mm
Note Other size can be customized.

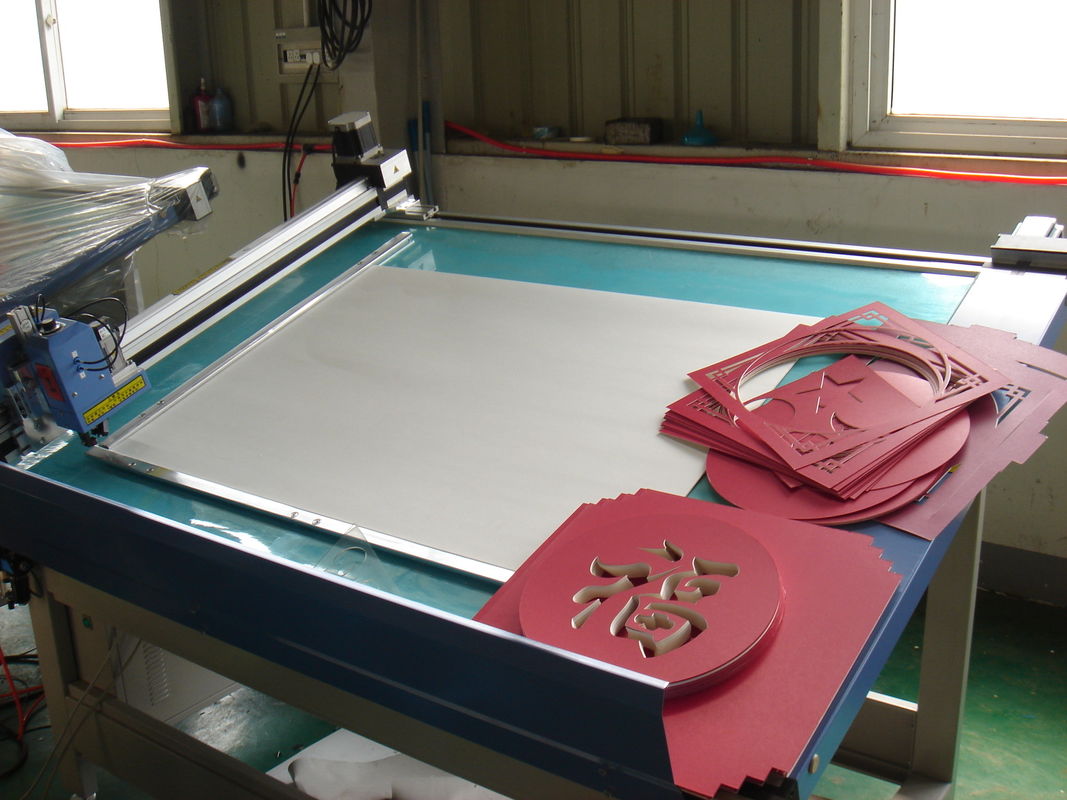

Cutting Samples



Gallery Photo Frame Cutting Machine / Mount Cutter Machine Mat Paper Board Cutting Plotter 0
