Product Details:
Payment & Shipping Terms:
|
Product Name: | Low Layer CNC Gasket Cutting Machine With Convey Belt For Car Interior | Model: | DCF70X 2013 |
---|---|---|---|
Effective Cutting Area: | 2500*1600mm 200*1300mm 1300*1000mm | Max Aped: | 1400mm/s |
Smallest Cutting Diameter: | 6mm | Maximum Cutting Thickness: | 50mm |
Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets, Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
Cutting Thickness: | Less Than 100mm | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
TABLE: | Flatbed, Conveybelt, | TABLE: | Flatbed, Conveybelt, |
Highlight: | cnc gasket cutter,cnc leather cutting machine |
CNC Gasket Cutting machine Single Module cutting system oscillating knife digital cut
Introduction:

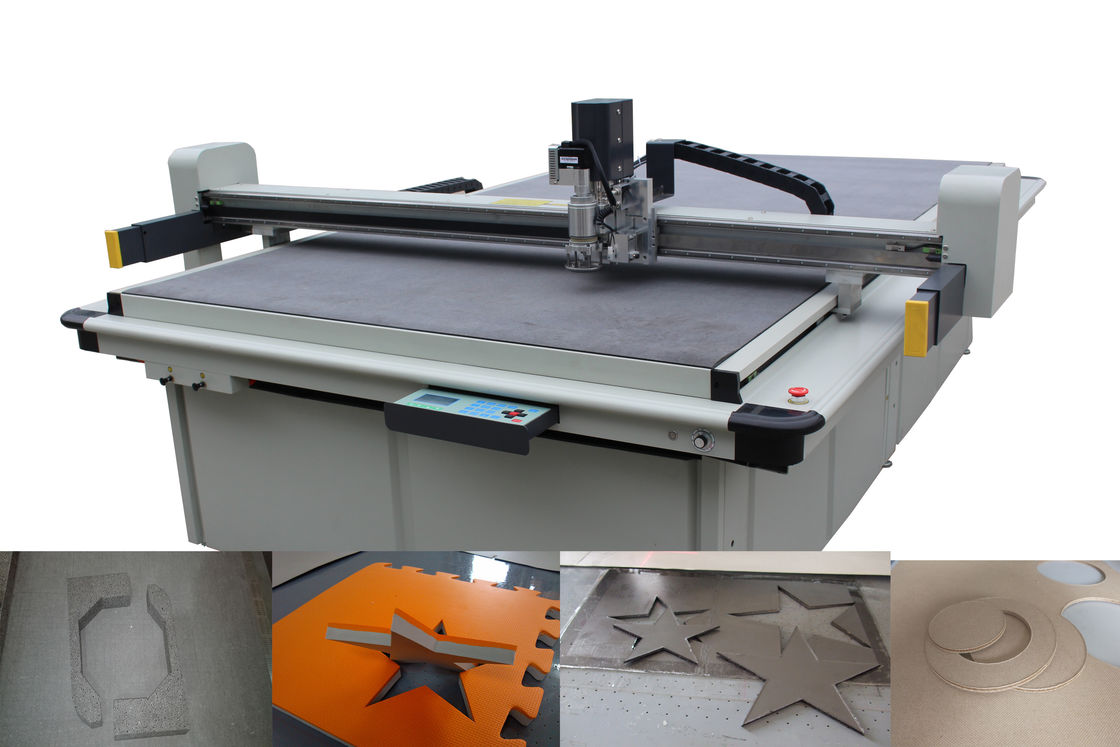

DCF7XR series high speed cutting system is developed based on the DCF7X cutting machine. Retaining all the functions the DCF7X cutting machine has, this cutting bed equipment has a convey belt for material transportation. Thanks to the convey belt, finished cut materials will be moved out of the cutting area automatically, while those uncut materials will be automatically moved in. Our convey belt cutting system is quite appropriate for continuously cutting long materials such as cloth, carpet and automobile interior decoration materials. With this cloth cutting machine, your production efficiency will be greatly improved and your labor cost will be reduced. This product also called low-layer cutting system, single-layer cutting system, mat cutting machine, car seat cutting machine, gasket cutting machine, composite cutting machine, car interior cutting machine, sofa fabric cutting machine, leather cutting machine and so on, according to the different cutting material and application.
Cutting materials:
Car mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth, plush toys, shoe lining, presoaked material, glass fiber, carbon fiber, rubber gasket, Graphite seals etc.
Application:
Automotive interior, Composite materials, Seal gasket, Sporting goods, Sofa fabric etc.
Blade | Thickness | Material |
16 Degrees Blade | Less Than 15MM | Double Wall Corrugated Paper |
Triple Wall Corrugated Paper | ||
Honeycomb Board | ||
26 Degrees Blade | Less Than 10MM | E Wall Corrugated Paper |
B Wall Corrugated Paper | ||
Double Wall Corrugated Paper | ||
White Cardboard | ||
Kraft Paper | ||
E Wall Corrugated Paper | ||
B Wall Corrugated Paper | ||
Double Wall Corrugated Paper | ||
39 Degrees Blade | Less Than 3MM | White Cardboard |
Grey Board(2mm, 3mm) | ||
Kraft Paper | ||
Kiss Cut | Less Than 1MM | Stickers |
Adhesive Tape | ||
V-Cut | Honeycomb Board etc. | Honeycomb Board(9mm, 13mm, 15mm) |
4MM Drill | Less Than 10MM | Acrylic and PVC |
6MM Drill | Less Than 15MM | Acrylic and PVC |
Main Features
The felt convey belt of our product is imported and the material transportation system is of high efficiency.
Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.
New steel structure, suit for production use.
Specification
Model | DCF732516R | DCF731713R | DCF731310R |
Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
Configuration | Oscillating knife,pen,convey system | ||
Max aped | 1400mm/s | ||
Smallest cutting diameter | 6mm | ||
Maximum cutting thickness | 30mm | ||
Control line and driver | Servo | ||
Precision | ≤0.1mm | ||
Data form | HPGL,DXF,PDF | ||
Voltage | 220v±10%50Hz | ||
Data port | parallel port,serial port,USB port | ||
Option | Video registration system, feeding and blanking system | ||
Occupy dimension(L*W*H) | 3500*3200*1400mm | 2650*2900*1400mm | 2200*2570*1400mm |
Note | Other size can be customized. |
Main Features
The felt convey belt of our product is imported and the material transportation system is of high efficiency.
Highly-efficient servo system, liner guide driving system and new module design are employed to our convey belt cutting system.
New steel structure, suit for production use.
AQ
1. How long can I get the feedback after we send the inquiry?
A:We will reply you within 12 hours.
2. Are you a factory?
A:Yes, We are. We have devoted in this field over 20 years.
3. Where is your factory? How can I visit you?
A:We are in Shanghai, we can pick you up from airport or train station if you come to visit us.
Any question, pls feel free to make me know.
Optional
Video registration system, feeding and blanking system.
