Product Details:
Payment & Shipping Terms:
|
| Glue: | Cold | Size: | 1300*1800mm |
|---|---|---|---|
| Work Station: | 2 Or More | Work Sation: | 1 |
| Lifting: | Auto Lifting | Feeding: | Auto Feeding |
| Stack Height: | 840mm | Industry: | Corrugated POS/POP Displays (FSDUs, CDUs, Dump Bins) |
| Applcation: | Standard Or Bespoke Corrugated Cartons | Application: | Foam For Packaging, Insulation Or Acoustics |
| Usage: | Expanded Polystyrene For Packaging, Insulation And Construction | Operator: | Up To Four |
| Control Method: | XY Axis | Power: | 150W |
| Glue Output: | 2-3Kg/h | Model: | Glue Plotter Gluer Machine |
| Power Supply: | AC 220V/50Hz | Maximum Dispensing Area: | 1300mm X 1800mm |
| Nozzle: | 0.3, 0.4mm | Dimensions: | 2100mm X 2000mm X 1050mm |
| Type: | Hot Or Cold Glue | Function: | Glue Dispensing |
| Heating Time: | 2-30min | Nozzle Diameter: | 0.3mm |
| Weight: | 5-10kg | Glue Capacity: | 5L |
3Apply hot melt and cold (pva) glues with speed and precision to your POP display and packaging materials. The GluerX® is a high quality (made in China) XY glue plotter table with application speeds up to 1.3m/s.
Designed glue patterns are programmed into the machine through a combination of a touch screen and sports-controlled system and using a DXF/PLT/AI transfer system, our Glue Plotter is a simple machine to set up and operate meaning unskilled personnel that are used to using hand guns can be used.
- Servo-controlled automatic XY gluing plotter
- Automatic raising bed
- Application of hot melt adhesives and cold PVA glue

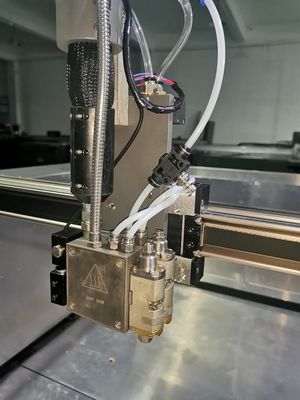

- many different types of glue head can be fitted. Both hot melt and cold (pva) can be applied in spray(optional)/bead/microdot application modes.
- standard located the original point is laser light, and projector system as a optional which is easy to move the file to the correct place.

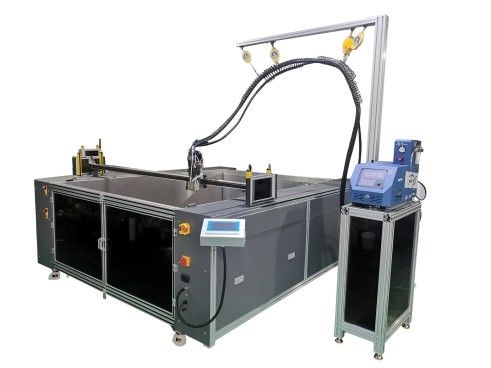

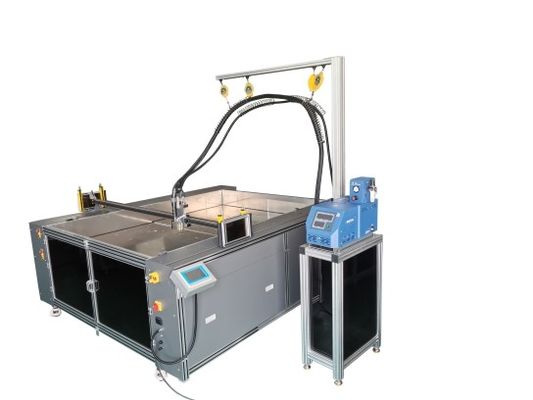

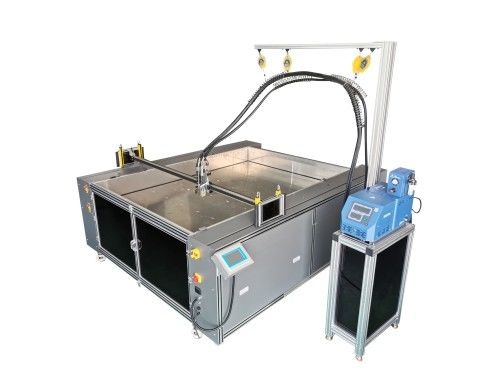

GluerX is a large format XY Glue Plotter Table. The design of the machine allows for up to four operators to use the machine at one time. Both hot melt and cold PVA glues can be applied with extreme position in bead, microdot and/or spray application modes. Multiple jobs can be glued simultaneously in different areas of the machine for maximum productivity and versatility
XY gluer application machine is widely used in the print, point of sale (POS) and packaging industry, however it is not just limited to these markets.
application:
1. Corrugated POS/POP displays (FSDUs, CDUs, dump bins)
2. Standard or bespoke corrugated cartons
3. Foam for packaging, insulation or acoustics
4. Expanded polystyrene for packaging, insulation and construction
Specific niche industry applications, talk to us!
how to use it:

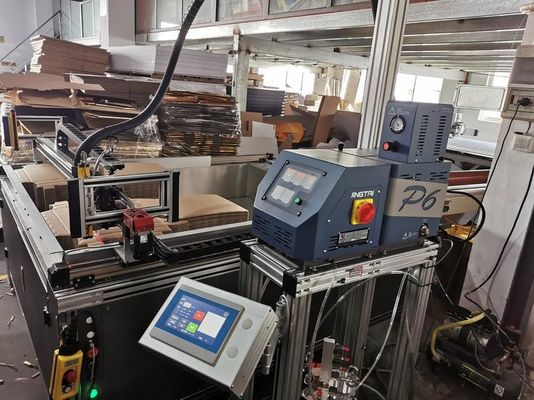

The GLUERX® is an XY Glue Plotter Table, also known as a 'CNC Gluer' or 'Gluing Table' or “gluing machine or "CNC Gluging plotter". The machine can rapidly dispense hot melt and cold (PVA) glues in any shape, pattern or design. Simply stack your materials into the automatic lift tables of the machine, prepare your glue design and click start
| Model | MEG1318C | MEG2516C | MEG3020C | ||
| Max Gluing Size | 1800*1300 mm | 2500*1600MM | 3000*2000mm | ||
| Working speed | Maximum speed can be reach 1.5m/s | ||||
| File format | DXF,PLT,AI, PDF,. | ||||
| Position | laser Lamp | ||||
| Stack Height | 860mm | ||||
| Raising table | One set or two Sets of auto-raising table | ||||
| Power | 7.5KW | ||||
| Machine Size | 2150*2000*1000mm | 2850*2300*1000mm | 3350*2700*1000mm | ||
