Payment & Shipping Terms:
|Product Name:||Paper Box Cutting Machine||Model:||DCZ503020|
|Effective Cutting Area:||3000*2000mm||Max Aped:||1200mm/s|
|Smallest Cutting Diameter:||6mm||Maximum Cutting Thickness:||60mm|
flatbed digital cutter drawing creasing cutting servo motor vacuum pump oscillating knife digital cutPaper Box Cutting machine
1. Oscillating cutting knife, accurate and professional cutter for soft materials;
2. Marking pen.
3. Hobbing cutter, specialized in fabric cutting.
4. V-cutter, cut grooves for carton.
5. Milling-cutter, for relatively hard materials, eg: Acrylic.
6. Creasing wheel, for making folding lines.
(1 and 2 are standard configuration, 3 to 6 are optional.)

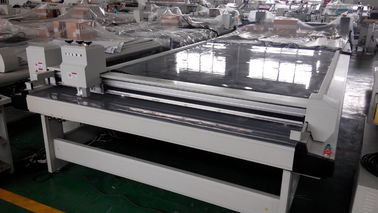

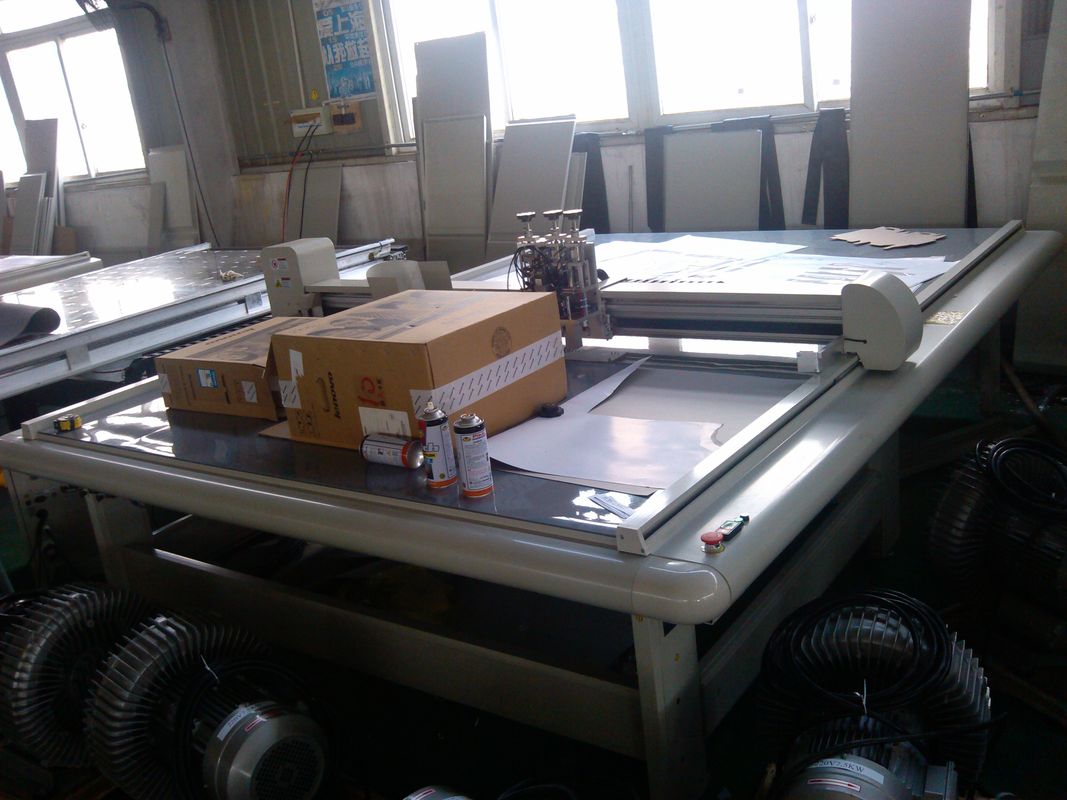

a.DCZ50 series paper box carton sample making machine is AOKE new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.
|Effective cutting area||2500*1600mm||1700*1300mm||1300*1000mm|
|Configuration||Oscillating knife,pen,creasing wheel,drag knife|
|Smallest cutting diameter||6mm|
|Maximum cutting thickness||15mm|
|Control line and driver||Servo|
|Data port||PCI port|
|Data Transmission speed||10MB/s|
|Input cushion area||32MB|
|Note||Other size can be customized.|
The main character of DCZ50 is as following:
I·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.
II·Carton and box can reach to perfect cutting performance
III·Convenient half cut set to achieve perfect half cutting performance
IV·Safety guard system is equipped to avoid injury
V·Brunt model sold well in EU and USA market
